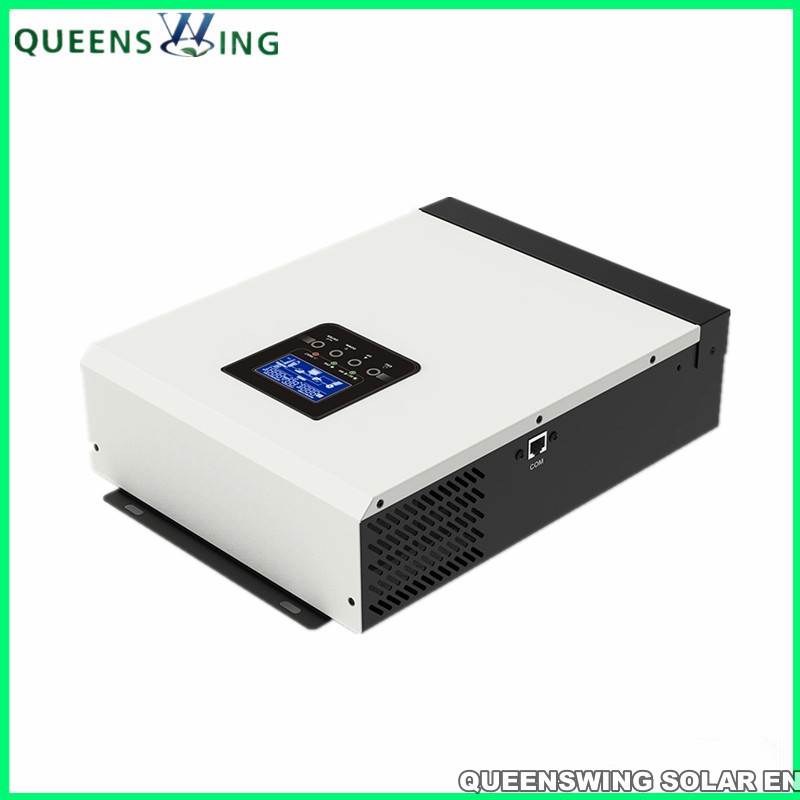

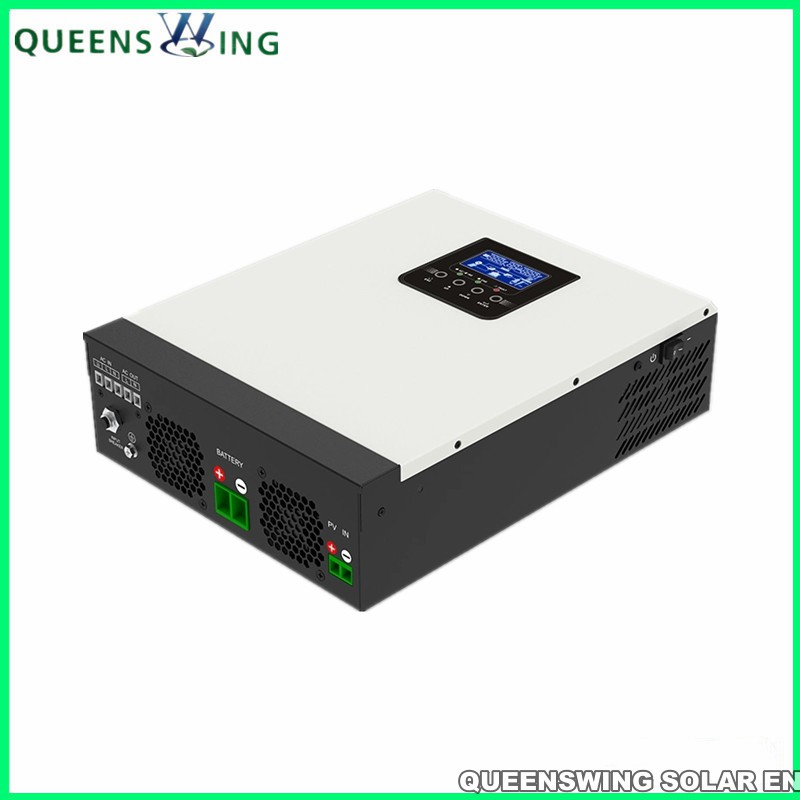

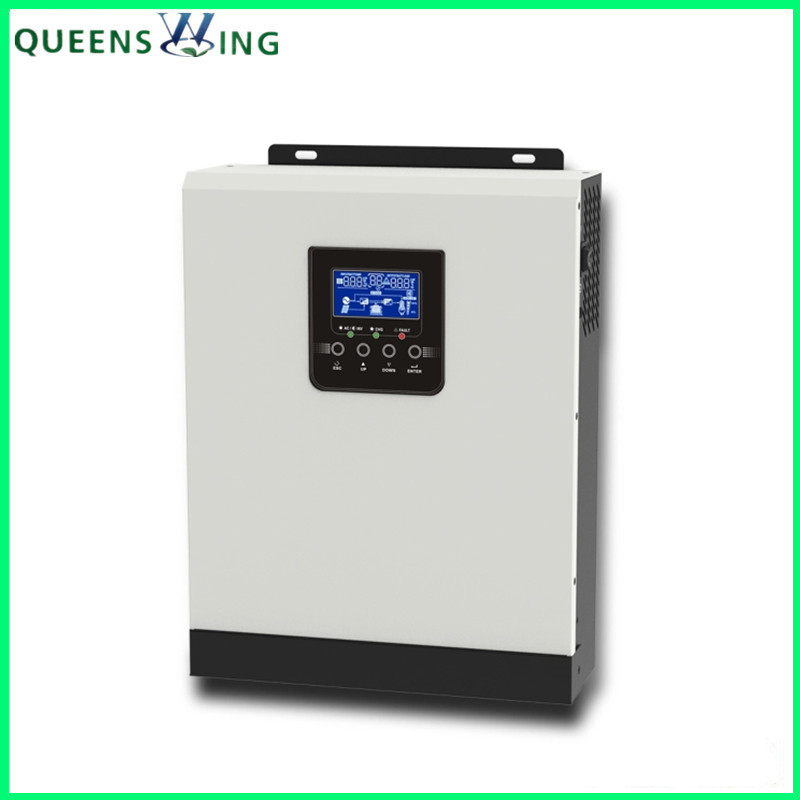

Product name : Pure Sine Wave 3kVA MPPT 24V 40A off-Grid Hybrid Solar Power Inverter
Item : QW-HMS-3K24
 Enlarge Image                   Back
             [Next Product]→


Details:
Pure Sine Wave 3kVA MPPT 24V 40A off-Grid Hybrid Solar Power Inverter

Product Introduction

Queenswing off grid solar inverter is integrated with a MPPT or PWM solar charge controller, a high frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications.

Product Features
• Pure sine wave inverter
• Built-in MPPT solar charge controller
• Selectable input voltage range for home use
• Selectable charging current based on applications
• Configurable AC/Solar input priority via LCD setting
• Compatible to mains voltage or generator power
• Auto restart while AC is recovering
• Overload and short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function
• Smart battery charger design for optimized battery performance





















Technical Data
1.5KVA 3KVA HYBRID SOLAR INVERTER BUILT IN MPPT SOLAR CHARGE CONTROLLER
Model 1.5K-12V 3K-24V
Rated Power 1500VA/1200W 3000VA/2400W
INPUT
Voltage 230VAC
Selectable Voltage Range 170-280 VAC(For Personal Computers)
90-280 VAC(For Home Appliances)
Frequency Range 50 / 60Hz (optional)
OUTPUT
AC Voltage Regulation(Batt. Mode) 230 VAC ± 5%
Surge Power 3000VA 6000VA
Efficiency(Peak) 93%
Transfer Time 10 ms (For Personal Computer)
20 ms (For Home Appliances)
Waveform Pure Sine Wave
BATTERY & AC CHARGER
Battery Voltage 12 VDC 24 VDC
Floating Charge Voltage 13.5 VDC 27 VDC
Overcharge Protection 15.5 VDC 31 VDC
Maximum Charge Current 20A 30A
SOLAR CHARGER(OPTION)
Maximum PV Array Power 500W 1000W
MPPT Range @ Operating Voltage 15VDC-80VDC 30VDC-80VDC
Maximum PV Array Open Circuit Voltage 102 VDC 102 VDC
Maximum Charging Current 40A 40A
Maximum Efficiency 98%
Standby Power Consumption 2W
PHYSICAL
Dimension, D x W x H(mm) 305X272X100 305X272X100
Gross Weight(kg) 6.1 6.3
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0ºC - 45°C
Storage Temperature -15ºC - 60°C
Product specifications are subject to change without further notice
MODEL 1.5K-12 3K-24
Inverter Power 1200W 2400W
Pmax.generated from solar charger 40Amp, 500W 40Amp,1000W
Best Panel Configuration 500Wp
(250Wp x 2pcs)
1000Wp
(250Wp x 4pcs)
