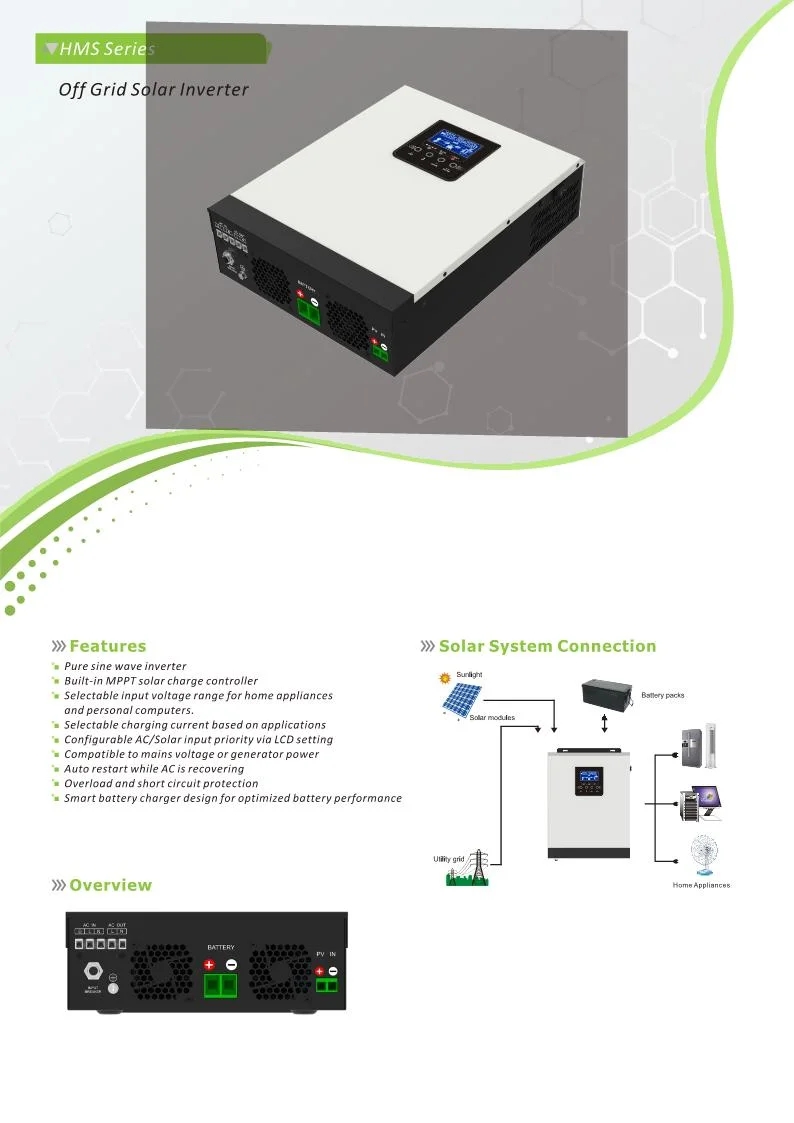

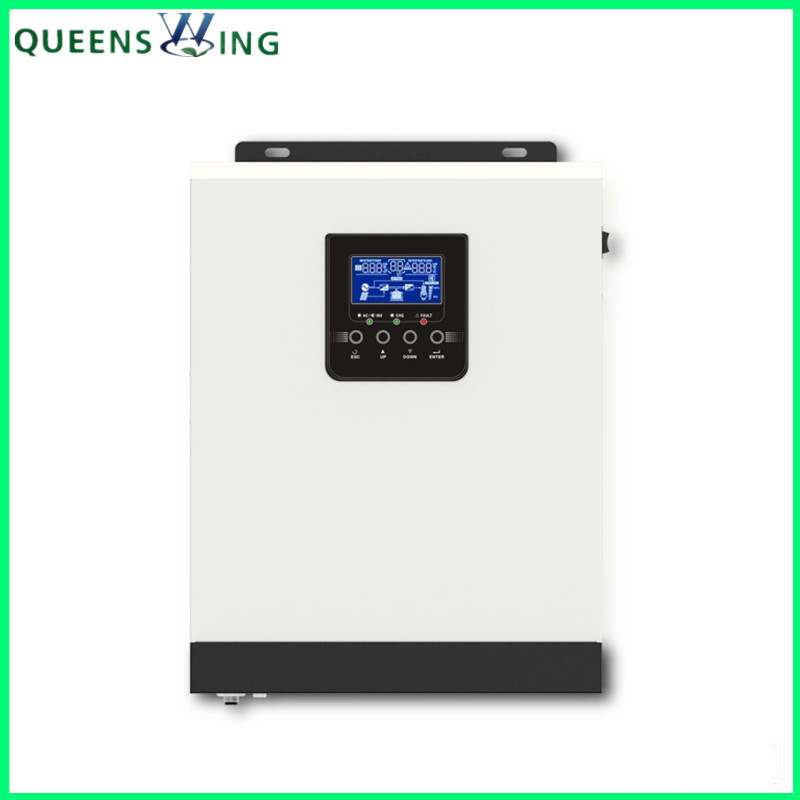

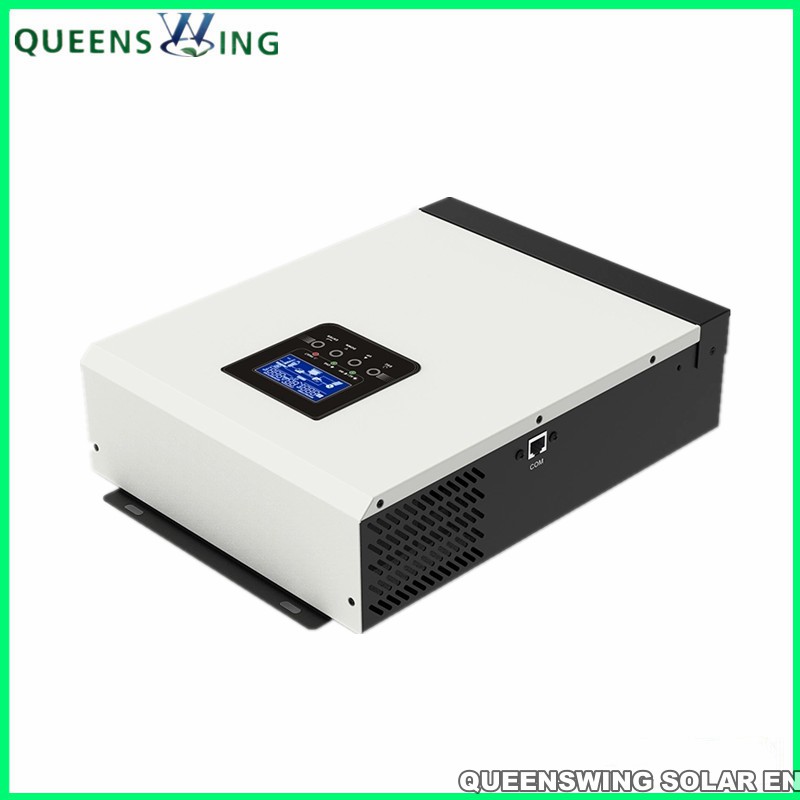

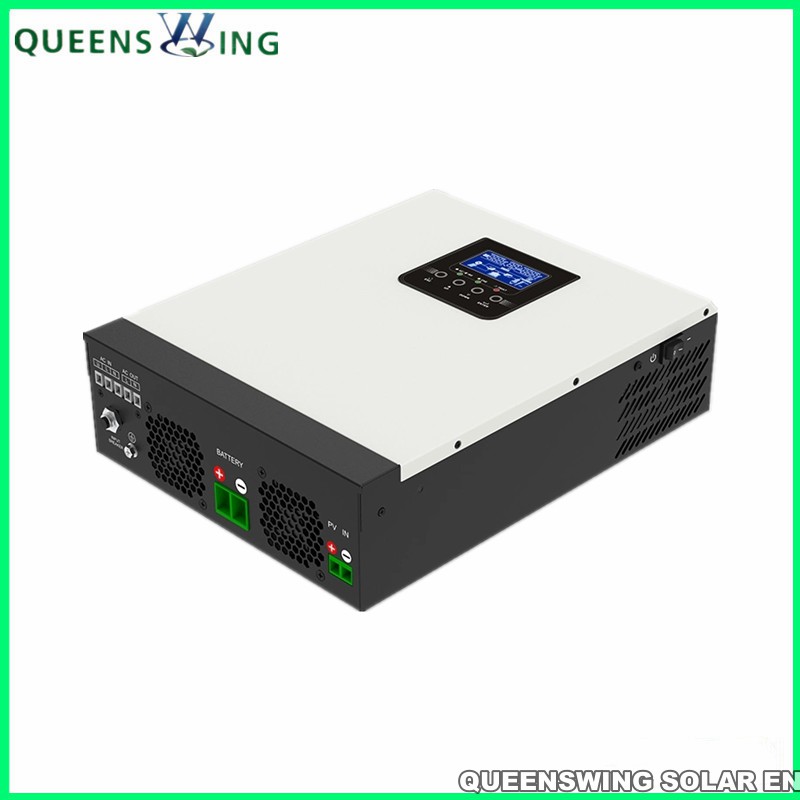

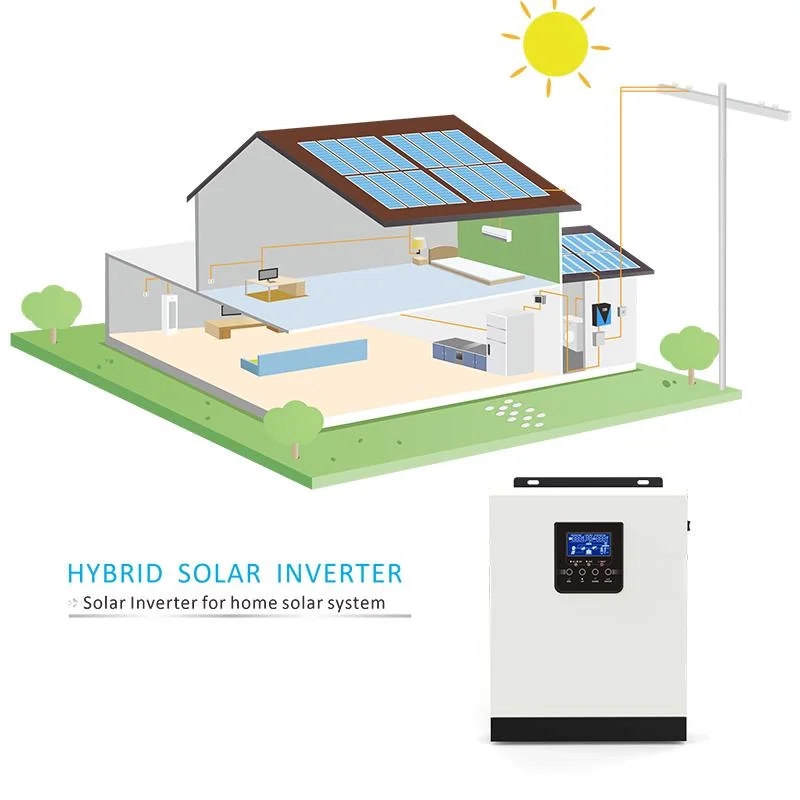

Queenswing off grid solar inverter is integrated with a MPPT or PWM solar charge controller, a high frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications.

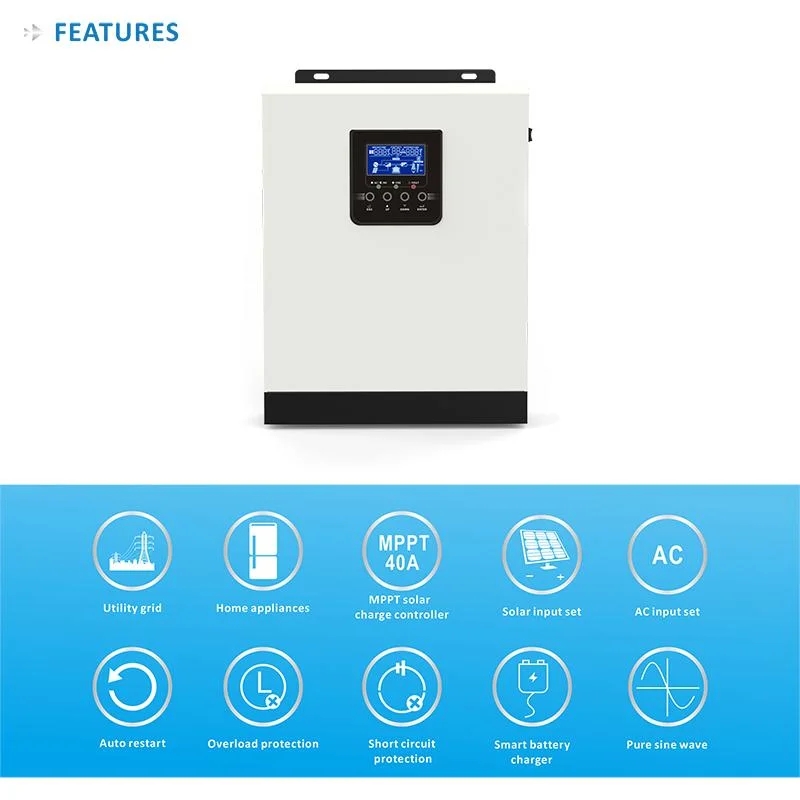

Product Features
• Pure sine wave inverter
• Built-in MPPT solar charge controller
• Selectable input voltage range for home use
• Selectable charging current based on applications
• Configurable AC/Solar input priority via LCD setting
• Compatible to mains voltage or generator power
• Auto restart while AC is recovering
• Overload and short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function
• Smart battery charger design for optimized battery performance

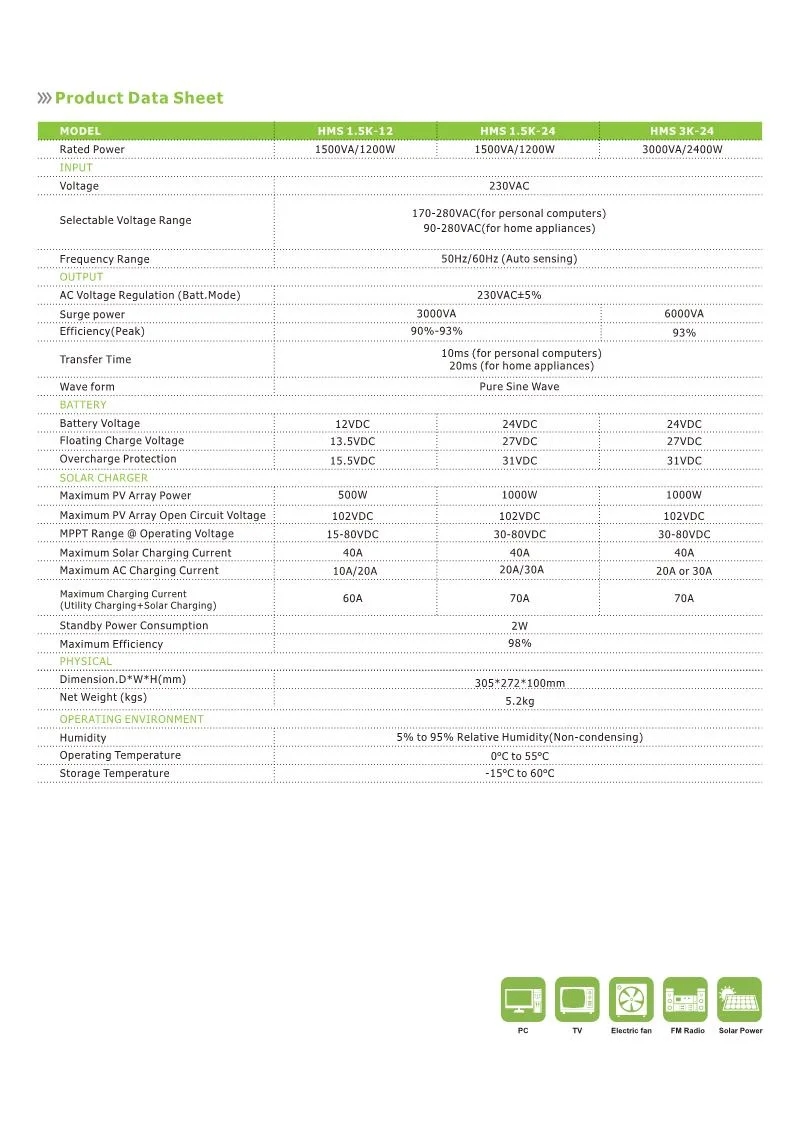

Technical Data

1.5KVA 3KVA HYBRID SOLAR INVERTER BUILT IN MPPT SOLAR CHARGE CONTROLLER
Model	1.5K-12V	3K-24V
Rated Power	1500VA/1200W	3000VA/2400W
INPUT
Voltage	230VAC
Selectable Voltage Range	170-280 VAC(For Personal Computers) 90-280 VAC(For Home Appliances)
Frequency Range	50 / 60Hz (optional)
OUTPUT
AC Voltage Regulation(Batt. Mode)	230 VAC ± 5%
Surge Power	3000VA	6000VA
Efficiency(Peak)	93%
Transfer Time	10 ms (For Personal Computer) 20 ms (For Home Appliances)
Waveform	Pure Sine Wave
BATTERY & AC CHARGER
Battery Voltage	12 VDC	24 VDC
Floating Charge Voltage	13.5 VDC	27 VDC
Overcharge Protection	15.5 VDC	31 VDC
Maximum Charge Current	20A	30A
SOLAR CHARGER(OPTION)
Maximum PV Array Power	500W	1000W
MPPT Range @ Operating Voltage	15VDC-80VDC	30VDC-80VDC
Maximum PV Array Open Circuit Voltage	102 VDC	102 VDC
Maximum Charging Current	40A	40A
Maximum Efficiency	98%
Standby Power Consumption	2W
PHYSICAL
Dimension, D x W x H(mm)	305X272X100	305X272X100
Gross Weight(kg)	6.1	6.3
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	0ºC - 45°C
Storage Temperature	-15ºC - 60°C
Product specifications are subject to change without further notice
MODEL	1.5K-12	3K-24
Inverter Power	1200W	2400W
Pmax.generated from solar charger	40Amp, 500W	40Amp,1000W
Best Panel Configuration	500Wp (250Wp x 2pcs)	1000Wp (250Wp x 4pcs)
