Products > Power Inverter > 110V/120VAC Power Inverter > AC110/120V 60Hz 2000W Auto Modified Sine Wave Power Inverters with digital display (QW-M2000)

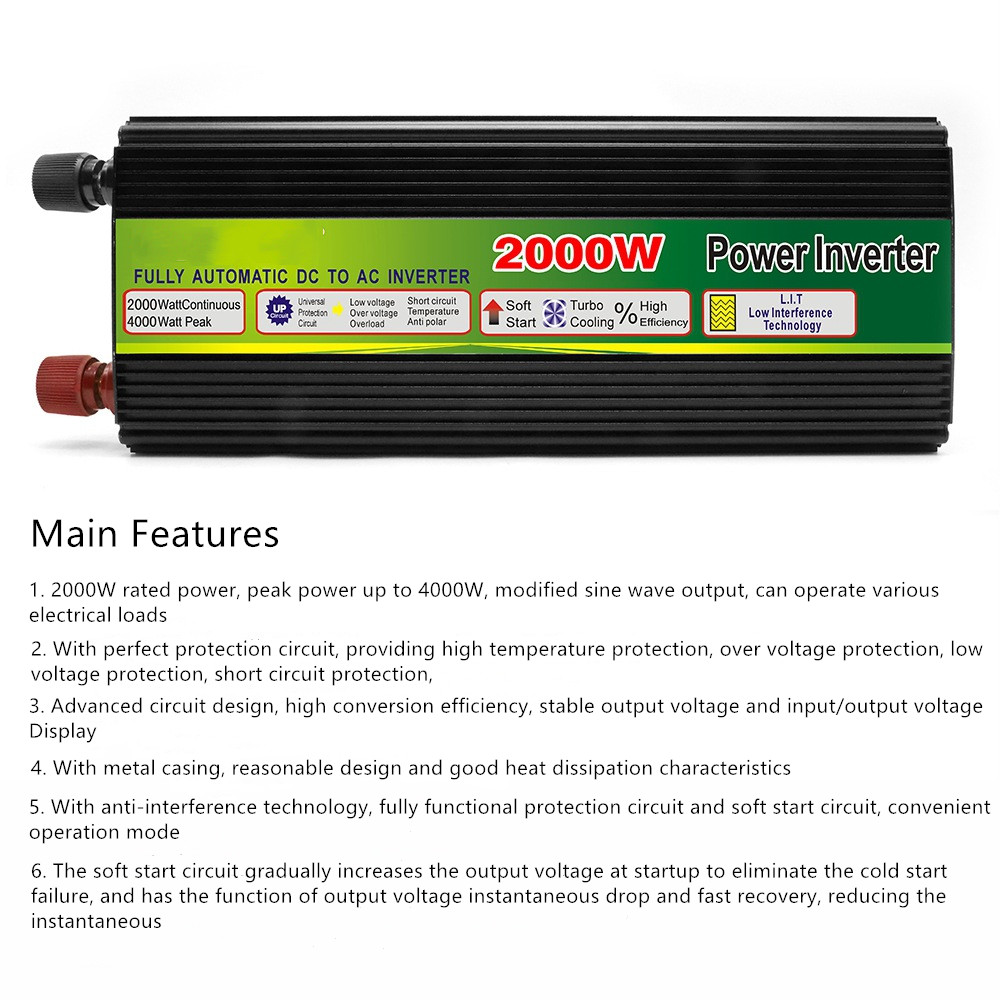

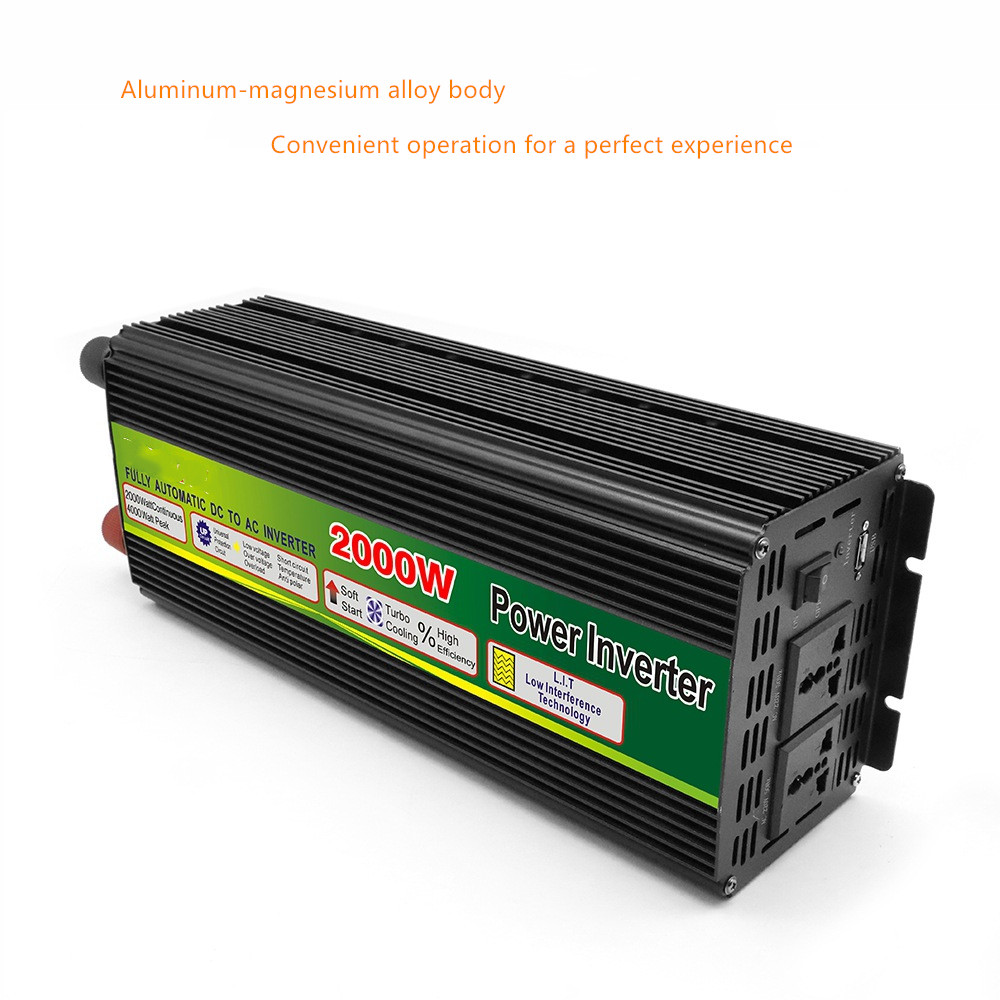

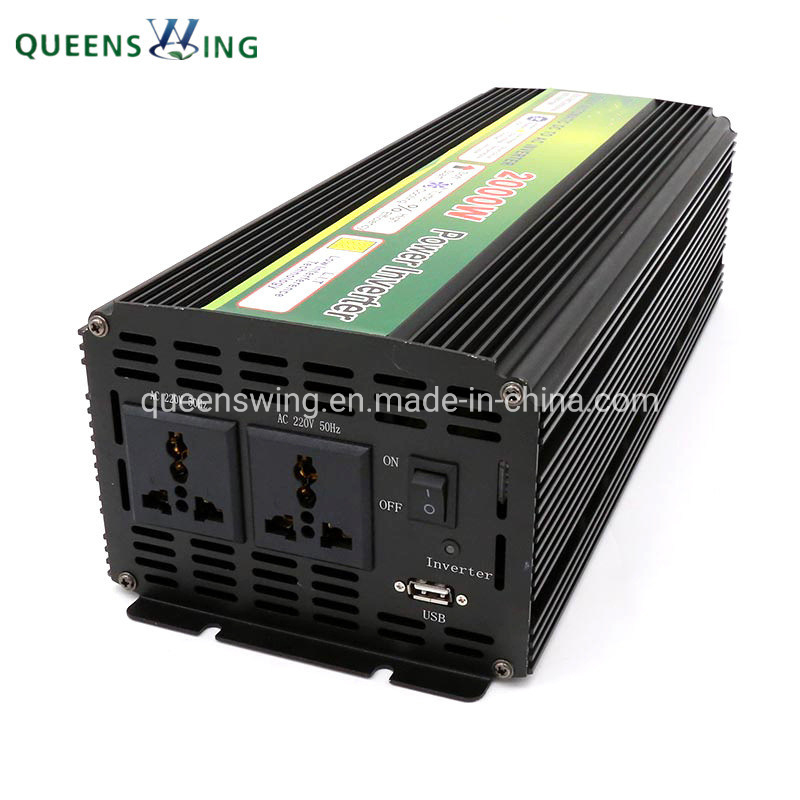

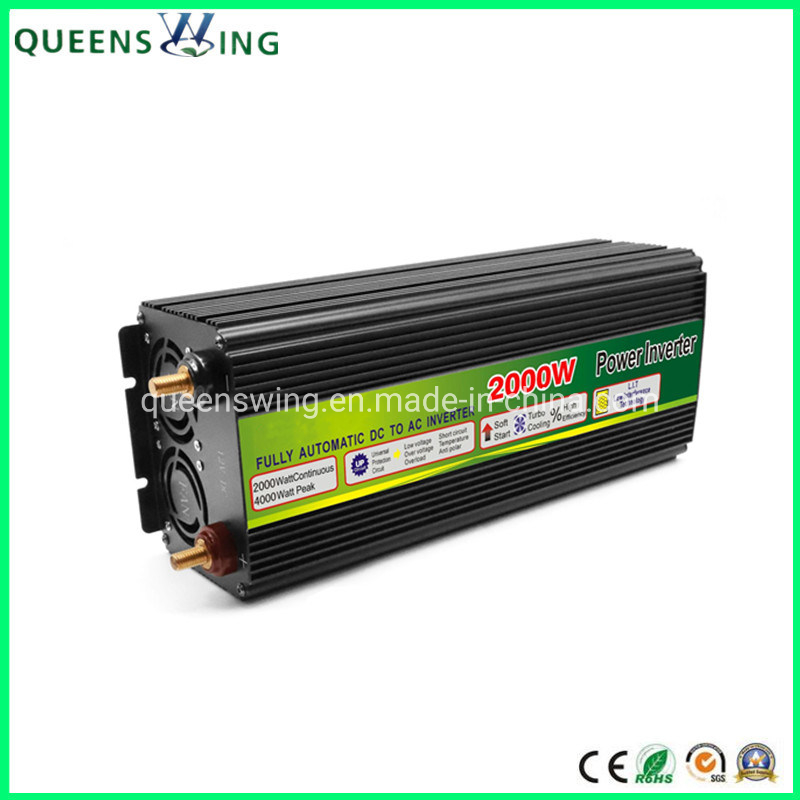

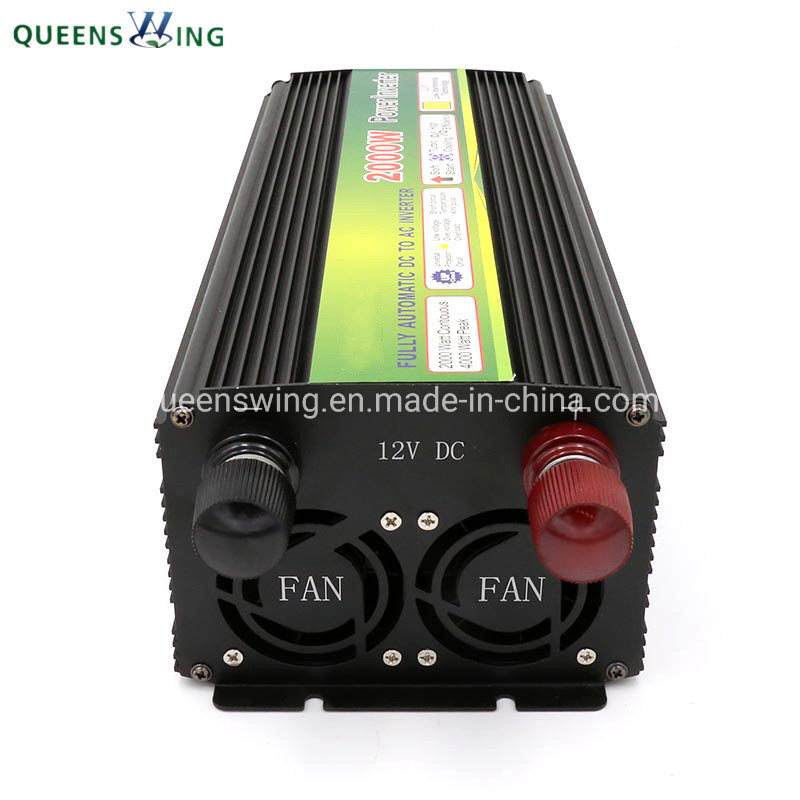

Product name : AC110/120V 60Hz 2000W Auto Modified Sine Wave Power Inverters with digital display (QW-M2000)
Item : QW-M2000
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

Inverter is a power equipment that can change DC(storage battery, solar cell, wind dynamo etc.) to AC.

This inverter use high frequency power conversion technology and the ferrite transformer instead of the old bulky silicon steel transformer, that is why power inverter is lighter, smaller than other similar inverter.

  • CE & Rohs & SGS was approved.

  • Upgrade big aluminium housing case and intelligent cooling fans, improve cooling ability, save enery and lengten the use life.

  • Voltage display: digital display

  • Maximum 2000W continuous output and  4000W surge power.


Technical Parameter:

Model No. MSW-2000
Rated power 2000W
Peak power 4000W
Transfer efficiency ≥94%
Input voltage 12Vdc 24Vdc
Input voltage range 10-15Vdc 20-30Vdc
Output voltage 110Vac 220Vac
Output voltage range 110Vac±5% or 220Vac±5%
Voltage display digital display
Frequency 50Hz±2% or 60Hz±2%
No load current 0.85A 0.5A
Waveform Modified Sine Wave
Low voltage alarm(DC) 10.5Vdc 21Vdc
Low voltage protection(DC) 10Vdc 20Vdc
Over voltage protection(DC) 15.5Vdc 31Vdc
USB port yes
Over-load Protection 2000W-2100W
Cooling Way Intelligent Cooling Fans
Fan Start Temperature ≥40±5
Temperature Protection 70±5

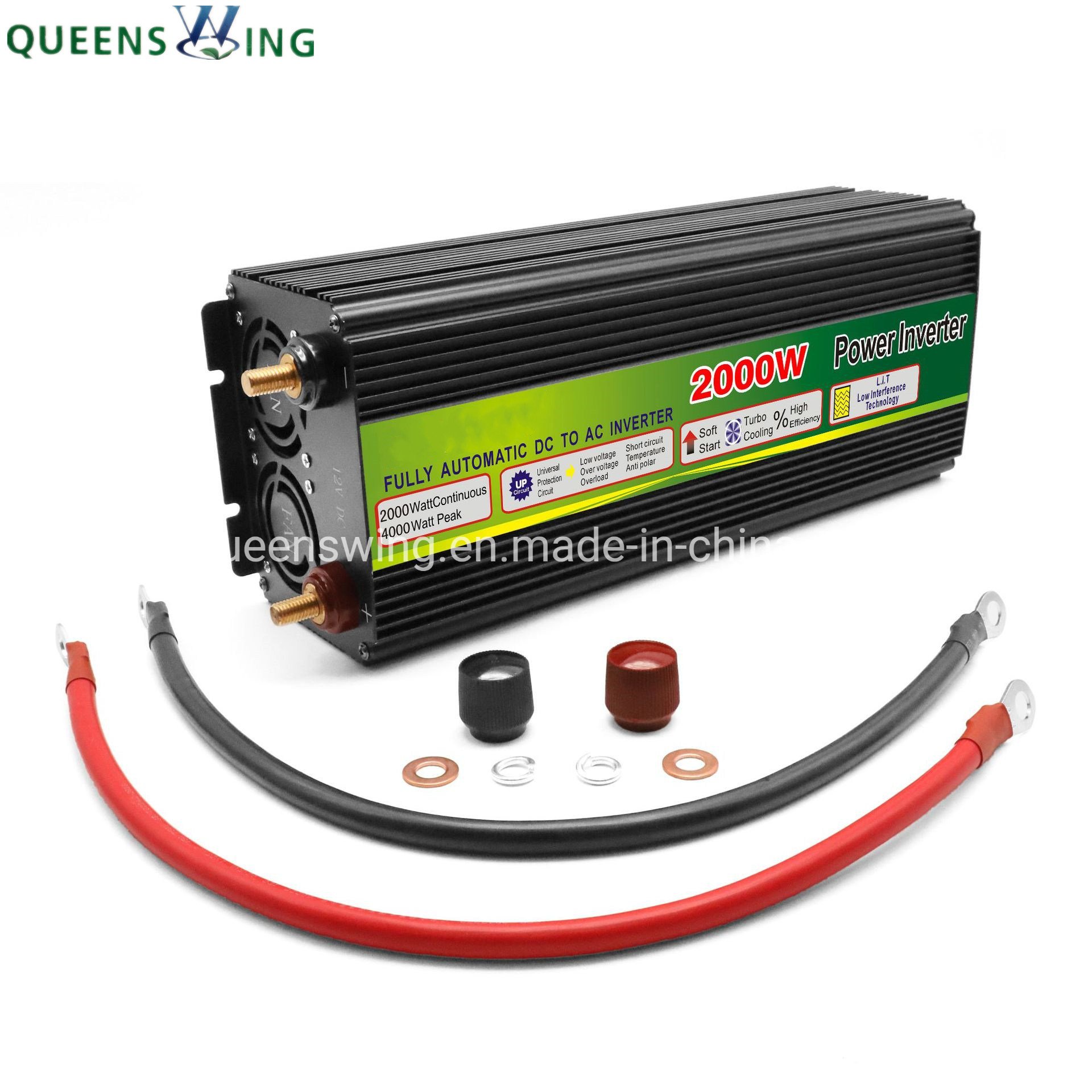

Packaged 1*pair battery cable(red & black)
1*english user manual
1*neutral packing box
Dimension Inverter: 281*150*100mm/5.5kg
Carton: 460*260*170mm/14kg/2pcs
Certifications CERohs

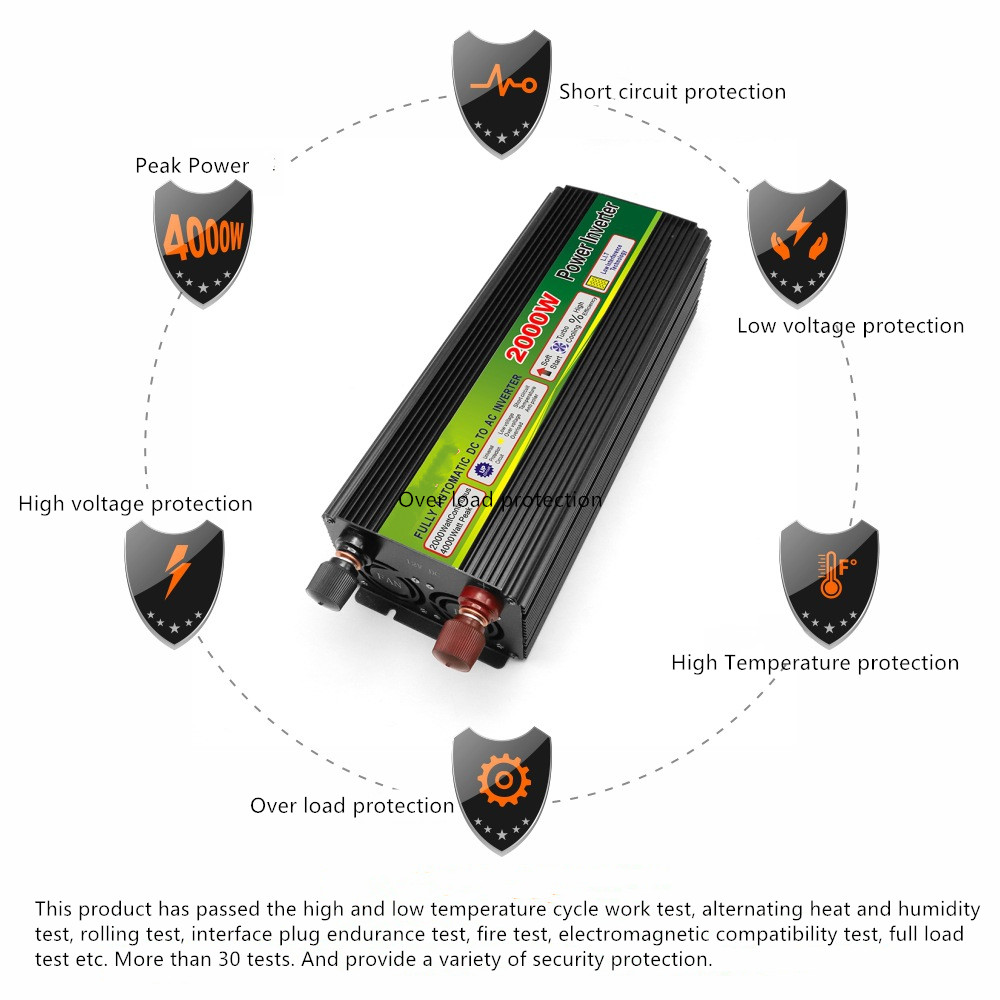

Protect functions:

1. Over load protection
2. Over current protection

3. Over voltage protection

4. Low voltage protection

5. Surge protection

6. Short circuit protection

7. High temperature protection

8. Reverse connection protection

9. Internal fuse protection

10. Leakage Protection

Applicable for: ( Solar/Wind/Home System )

1. Travel set equipment

2. Industrial equipment

3. Office equipment

4. Kitchen equipment

5. Household electrical equipment

6. Power tools
