Product name : AC110/120V 60Hz 2000W Pure Sine Wave Power Inverter (QW-P2000)
Item : QW-P2000
 Enlarge Image                   Back
←[Previous Product]


Details:




Feature:
  • The whole process is executed by CPU intelligent program.

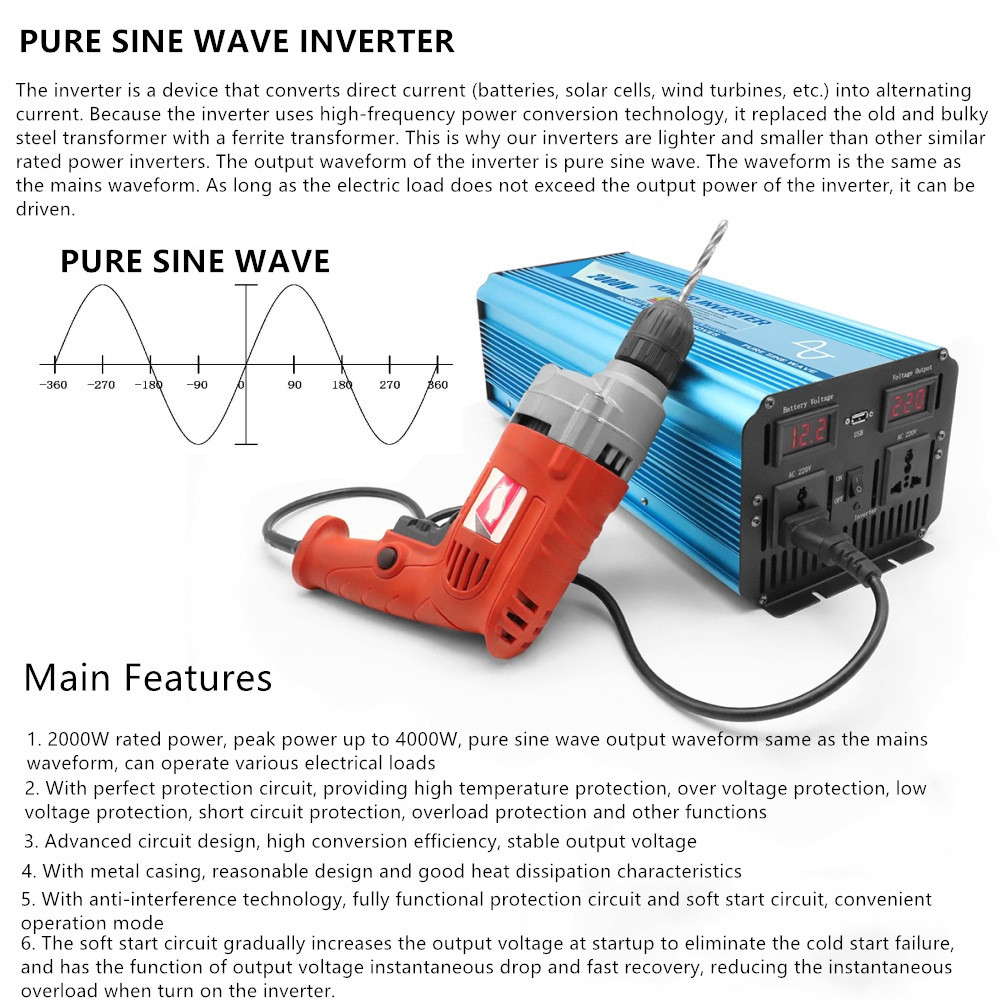

  • Pure sine wave output: Relative to the square wave or modified sine wave ( Step wave), it have a stronger effect in loading or load capacity.
  • Available with capacitive load, inductive load and any other type of general-purpose AC load, if it runs a refrigerator, television or radio equipment,  there would be no interference and noise and will not affect the load equipment performance and life.
  • High stability: Since it has over voltage, under voltage, overload, overheating, short circuit, reverse  and improved protection, stability of the system.
  • Digital intelligent control: The core device is controlled by a powerful micro-controller,  making the external circuit structure being simple, control being flexible and control strategy being powerful, thus ensuring excellent performance  and stability
  • Maximum 2000W continuous output and 4000W surge power.



Technical Parameter:



 LED(Digital Display): Input Voltage and Output Voltage
 LCD: Input Voltage, Output Voltage, Battery Electric Quantity and Waveform

Model No. PSW-2000D PSW-2000L
Rated Power 2000W
Peak Power 4000W
Transfer efficiency ≥90%
Circuit Topology push-pull type;
the whole process is executed by CPU intelligent program
Waveform Pure Sine Wave
Waveform Distortion ≤5(linear load)
No Load Current 1A
Voltage Display LED (Digital) LCD
Input Voltage 12V or 24V DC (option)
Output Voltage 110V, 120V, 230V or 220V DC (option)
Input Voltage Range 11V~15VDC or 21V~29VDC
Low Voltage Alarm 11VDC±0.5V or 21VDC±0.5V
Over Voltage Cut-off ≥15VDC or ≥29VDC
Output Voltage 110VAC±5%
Over-load Protection 2000W-2100W
Cooling Way Intelligent Cooling Fans
Fan Start Temperature ≥40±5℃
Temperature Protection 70±5℃
Frequency 50Hz or 60Hz ± 0.5%(option)

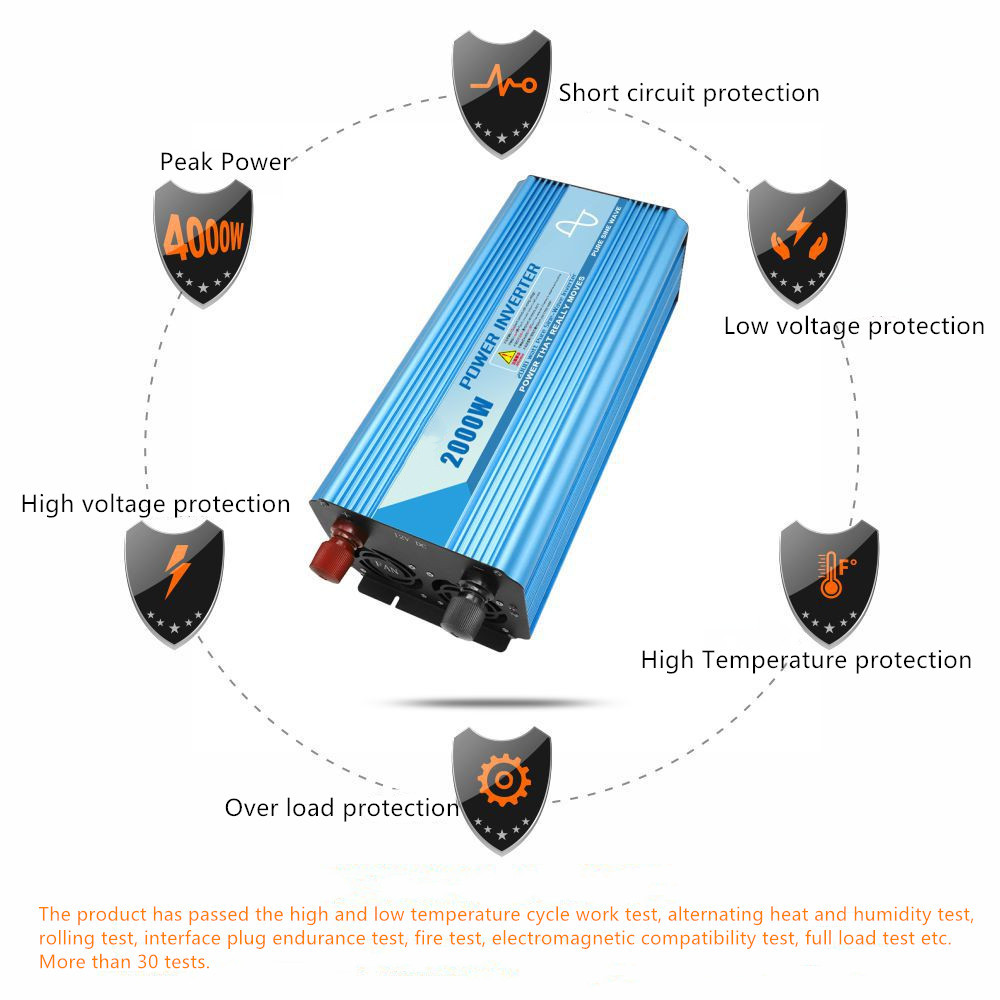

Protection Input low-voltageInput high-voltage, Over-Load, Short-circuit, Over-temperature and Reverse connection protection.
Green LED indicator Lighting(working);
Flash slow(lack voltage);
Flash fast(fault occur and the unit is in protection situation)

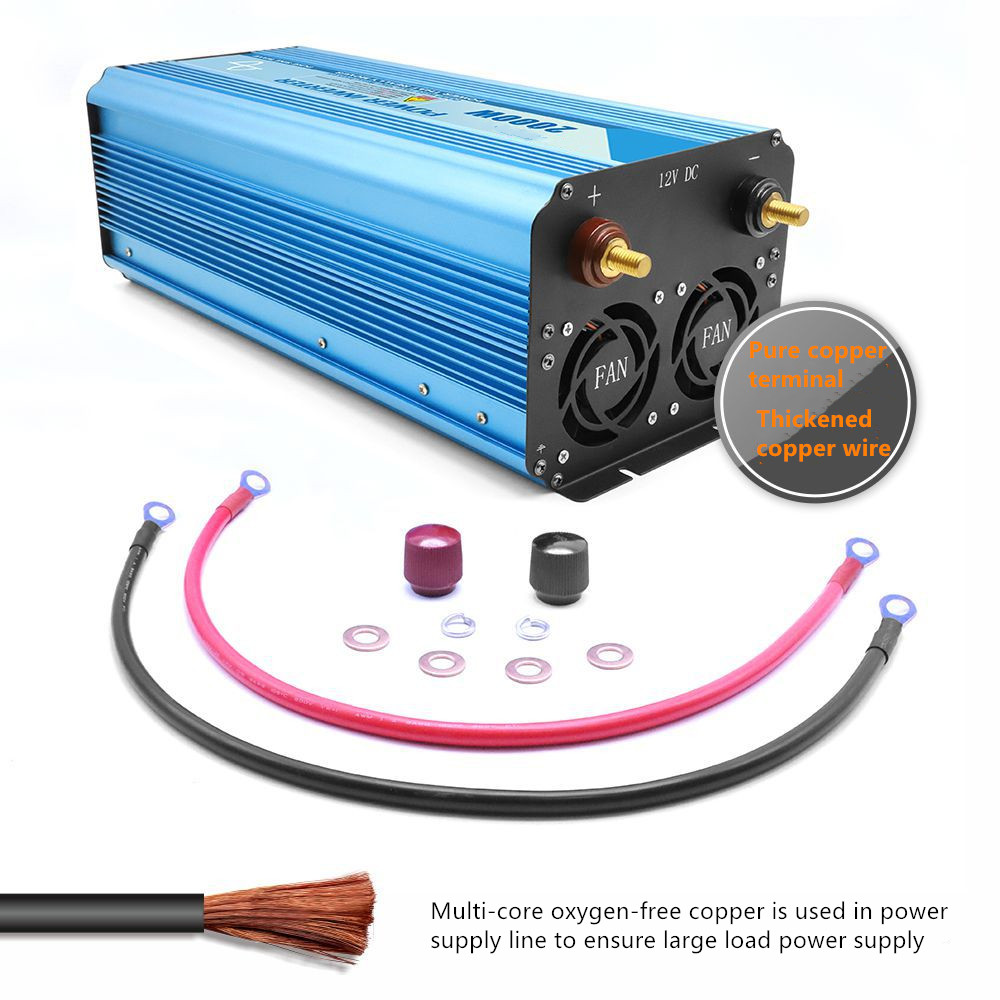

Packaged 1 pair battery cable(red & black)
1 bag fuses
1 english user manual
1 neutral packing box

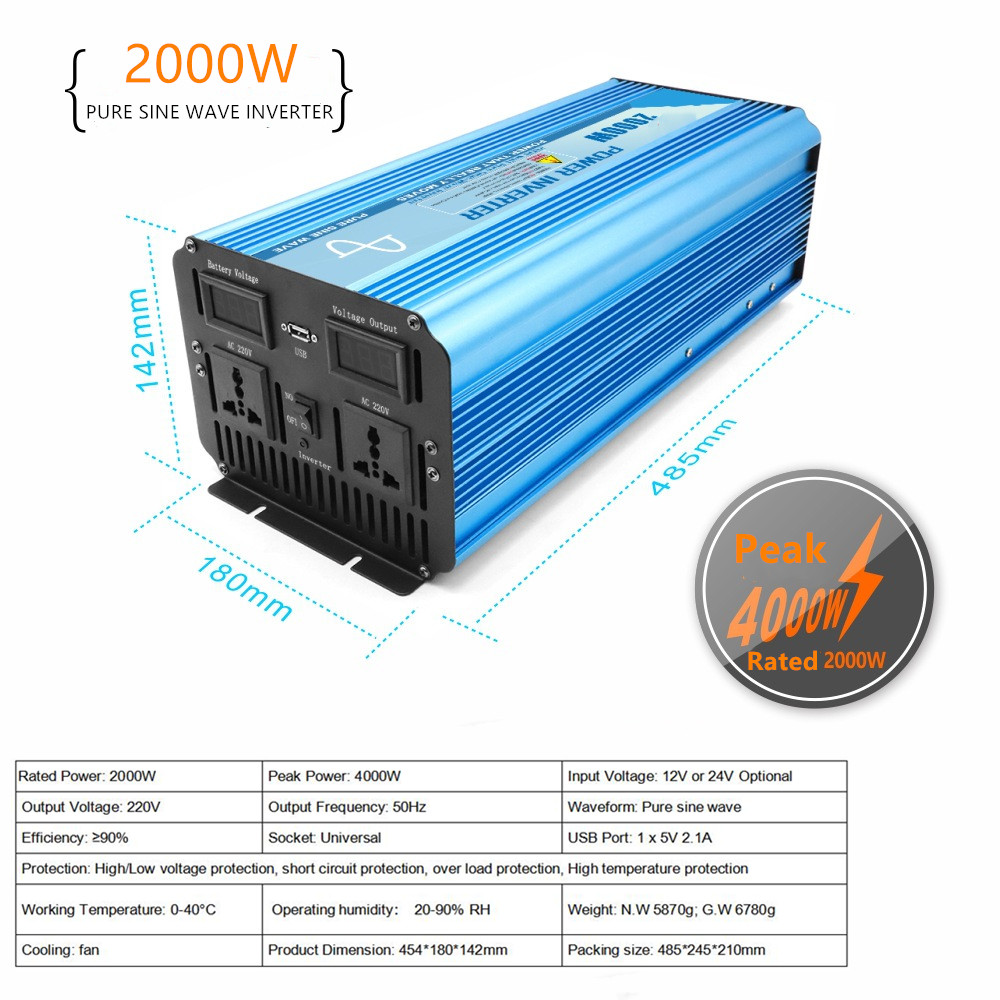

Dimension Inverter: 320*150*125mm/5.5kg
Carton: 485*230*406mm/11kg/2pcs
Certifications CE、Rohs

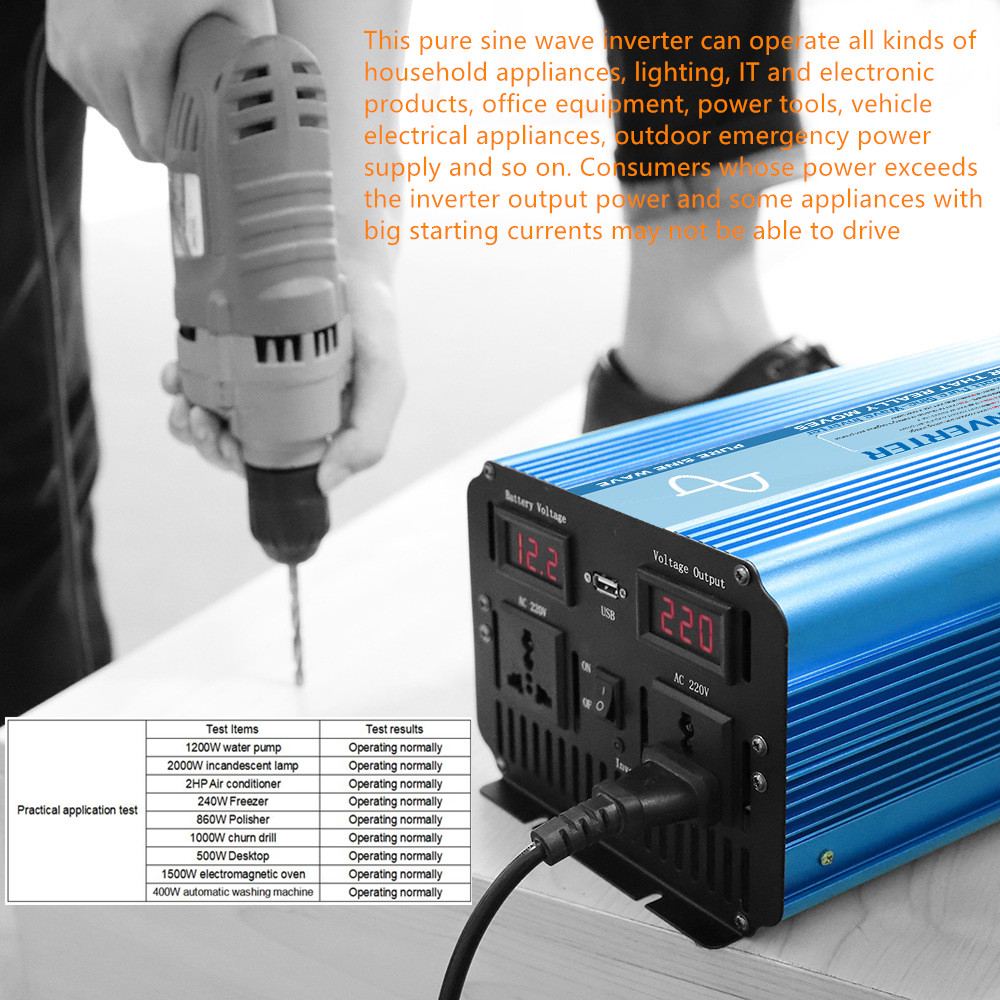

Application:

1. In-car or on-boat devices series: military vehicle, police cars, medical ambulance, ships, traffic lights, and etc.

2.Industry equipments series: solar energy, wind power, gas discharge lamp and etc.

3.Office area: Computer, printer, copier, scanner, digital camera and etc.

4. Kitchen utensils series: Micro-wave oven, induction cooker,refrigerator, and etc.

5.House appliance devices: Electric fans, vacuum cleaner, AC, lighting lamps, and etc.

6.Power tool series: electric saw, drilling machine, punching machines,air compressor ect.
