Products > Power Inverter > Pure Sine Wave Power Inverter > 5000W Pure Sine Wave Power Inverter with Digital Display
Product name : 5000W Pure Sine Wave Power Inverter with Digital Display
Item : QW-P5000
Price : Please contact us
 Enlarge Image                   Back
             [Next Product]→


Details:

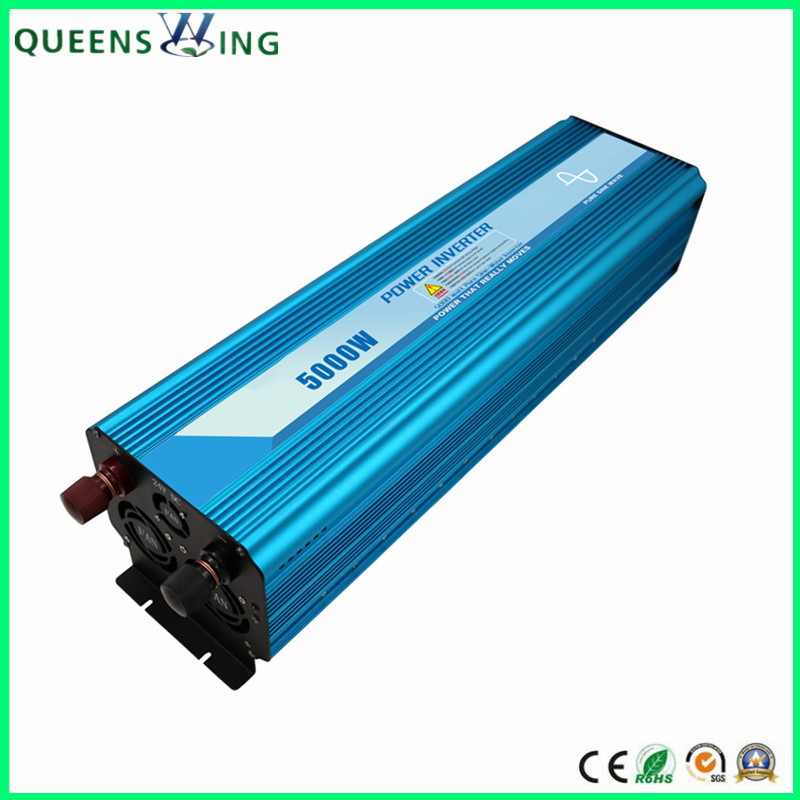

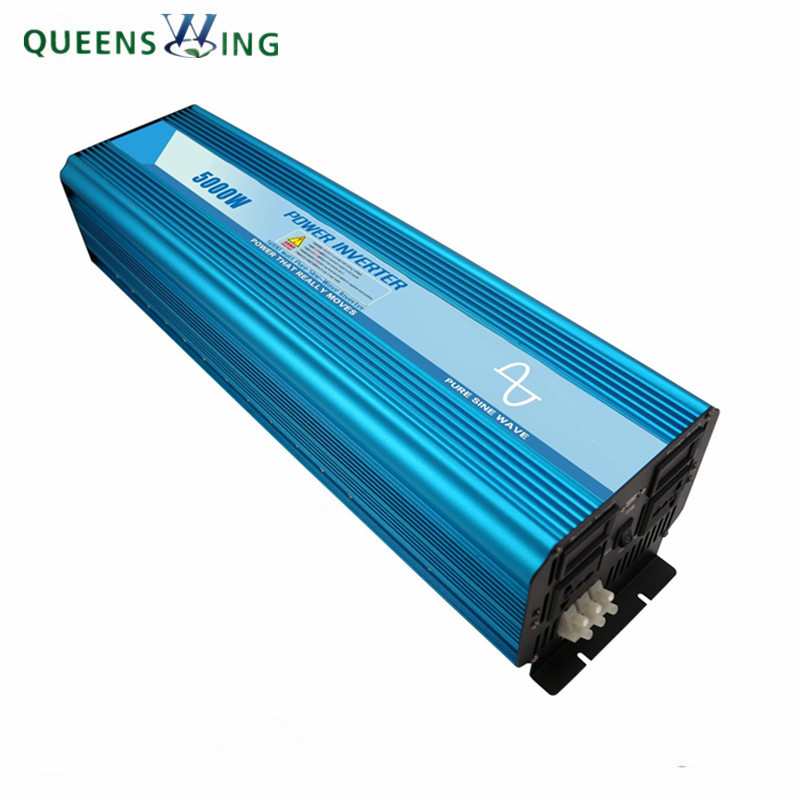

5000W Pure Sine Wave Power Inverter with Digital Display (QW-P5000)

Products Description:
Queenswing 5000W DC12/24V Pure Sine Wave Solar Power Inverter supplies high-quality true sine output wave, it is designed to operate popular electronic appliances and sensitive loads. Connecting Queensing pure sine wave inverter with battery terminals, then you can get AC power for your appliances.

Main Features:
Pure sine wave output: Relative to the square wave or modified sine wave ( Step wave), it have a stronger effect in loading or load capacity.
Digital display: Input voltage and Output Voltage.
* Revolving speed of the intelligent fan control
With USB port.
* Maximum 5000W continuous output and 10KW surge power.
* Available with capacitive load, inductive load and any other type of general-purpose AC load, if it runs a refrigerator, television or radio equipment,  there would be no interference and noise and will not affect the load equipment performance and life.
* High stability: Since it has over voltage, under voltage, overload, overheating, short circuit, reverse  and improved protection, stability of the system.

Technical Parameter:
Model No. PSW-5000
Rated power 5000W
Peak power 10000W
Transfer efficiency ≥90%
Input voltage 24Vdc 48Vdc
Input voltage range 20-30Vdc
Output voltage 220Vac 220Vac
Output voltage range 110Vac±5% or 220Vac±5%
Voltage display digital display
Frequency 50Hz±2% or 60Hz±2%
No load current <0.7A <0.5A
Waveform Pure Sine Wave
Low voltage alarm
(no-load)
DC 21V+/-0.5V
Low voltage cut off
(no-load)
DC 20V+/-0.3V
Over voltage protection
(no-load)
DC 30V+/-0.5V
USB port yes
Over-load Protection 5000W-5100W

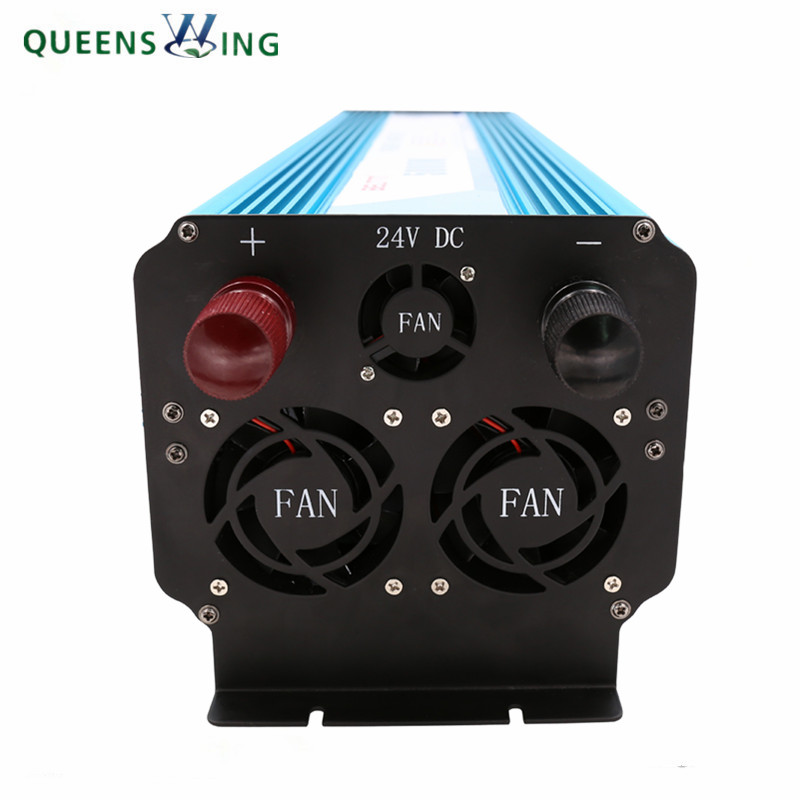

Cooling Way Intelligent Cooling Fans
Fan Start Temperature;
Temperature Protection
≥40±5ºC;
70±5ºC
Housing color blue
Packaged 1*pair battery cable(red & black)
1*english user manual
1*neutral packing box
Dimension Inverter: 685*180*167mm/10kg
Carton: 768*252*237mm/11kg/1pc
Certifications CE,Rohs

All protection:
1. Over load protection
2. Over current protection
3. Over voltage protection
4. Low voltage protection
5. Surge protection
6. Short circuit protection
7. High temperature protection
8. Reverse connection protection
9. Internal fuse protection
10. Leakage Protection



Application:


Wind generation, solar panel, home, office, car, board and some place that lack electricity. Ideally suitable for Journeys, Camping, Tents, Boat Trip, Working on the way and everywhere, where is no electricity!

Load:
1> Office equipment series: Computers, Printers, Copiers, Scanners, digital camera, etc.
2> Household appliances series: Vacuum cleaners, Fans, Lighting, Electric cutting knife, Television, Sewing machines, Electric fans, AC, etc.
3> Kitchen utensils series: Microwave ovens, Freezers, Coffee machines, Blenders, induction cooker, etc.
4> Electronics Series: TV, VCR, Game consoles, Radios, Power amplifiers, Audio equipment, Monitoring equipment, Terminal equipment, Intelligence platforms, Satellite communications equipment.
5> In-car or on-boat devices series: Military vehicle, police cars, medical ambulance, ships, traffic lights, and etc.
6> Industry equipments series: Solar energy, wind power, gas discharge lamp and etc.
                                   User Guide
Application Wattage Inverter Wattage
150W 300W 500W 800W 1000W 2000W 3000W 4000W
Mobile phone 5W
12 inch color television 16W
Video games console 20W
Electric light 25W
Satellite TV receiver 30W
CD or DVD player 30W
HiFi stereo 4-Head VCR 40W
Guitar amplifier (at average volume) 40W
Stereo system (at average volume) 55W *
Electric fan 55W
Notebook 60W
GE 9 inch color TV/radio/cassette 65W
19 inch color TV 80W
20 inch VCR combo 110W
27 inch color TV 170W
Stereo amplifier 250W   * *
Small-medium printer 350W     * * *
Home theater system 400W     * * *
Power drill 400W
Rice cooker 500W
Small coffee machine 600W       * *
Refrigerator 750W       * * *
Small microwave oven 800W       * * *
Toaster 1000W         * *
Hair dryer 1000W
Full size microwave oven 1500W           * * *
Electric kettle 1800W
Induction cooker 2000W           * * *
washing machine 2500W             * *
Air conditioner 16000BTU 2500W               *
Air compressor 3HP 2800W               *
Heavy duty power tools 2800W               *
Air conditioner 22400BTU 3500W               *

Note: For those starred models, pure sine wave inverters are preferred.

Other products:



Warranty:
L - The good construction warranty-1 years
L - Your client satisfied on the right schedule and quality
L - Your can get good reputation from your market and obtain more orders
L - Our professional service before and after sale
L - The reasonable price

Some about us
Queenswing is a professional manufacture specialized in Power inverter and solar products, We have professional development team. We pursues to establish the culture of "quality first, reputation best ".

Product category
Car Power inverter
Car Inverter with USB Port
Pure sine wave invertrer
UPS Pure sine wave inverter with charger
Modify sine wave inverter
UPS power inverter with charger
Solar energy power source
Solar charge controller

Our products usually are exported big quantity in to Europe, USA, African, Russia, Australiaetc. And our power inverter serials enjoy better reputation. With reliable quality and stable performance.

Payment Terms:
T/T, Western Union, Money Gram
Production arranged after receipt of payment.

Lead Time:
Sample order will be delivered within 7 working days.
Order quantity below 100PCS, delivery time is 7-15 working days.
Container order will be delivered within 15-30 working days.

Shipment:
Courier: FedEx, DHL, TNT, UPS, Aramex, EMS ect.
Forwarder: By sea / air or Customer designated


FAQ:

1. What is inverter?
Inverter is an electronic equipment that turn 12v/24v/48v dc into 110v/220v ac.

2. What is the difference between the inverter with UPS + charger and inverter with charger?

A2: UPS inverter: When the mains is on, the current through the inverter power to the load, and at the same time charge the battery. When mains drops, it will automatic transfer and let the battery to supply power for the load: Current flow direction is: Battery - inverter - Load.

With battery without UPS inverter: When the mains is on, the main electricly charge the battery, and the current of the battery through the inverter power to the load, always use battery power, without automatic transfer function.


3. What can a UPS do for me?

A1: Every UPS will supply power to a load (such as a computer, telephone switch or medical equipment) when mains power fails, it may also condition the power and prevent spikes, brownouts, interference and other unwanted problems from reaching the supported equipment.
