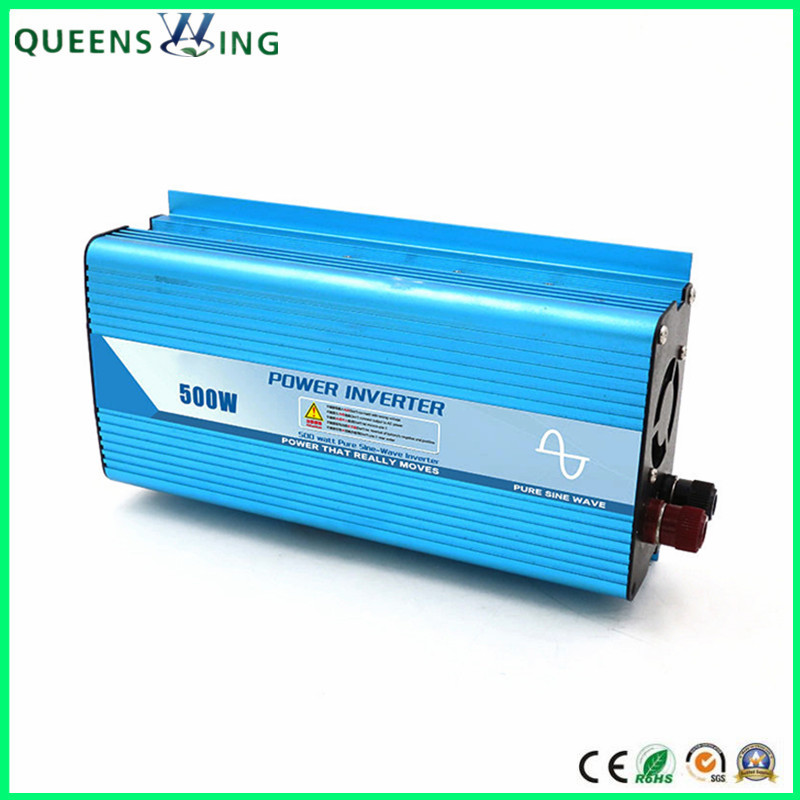

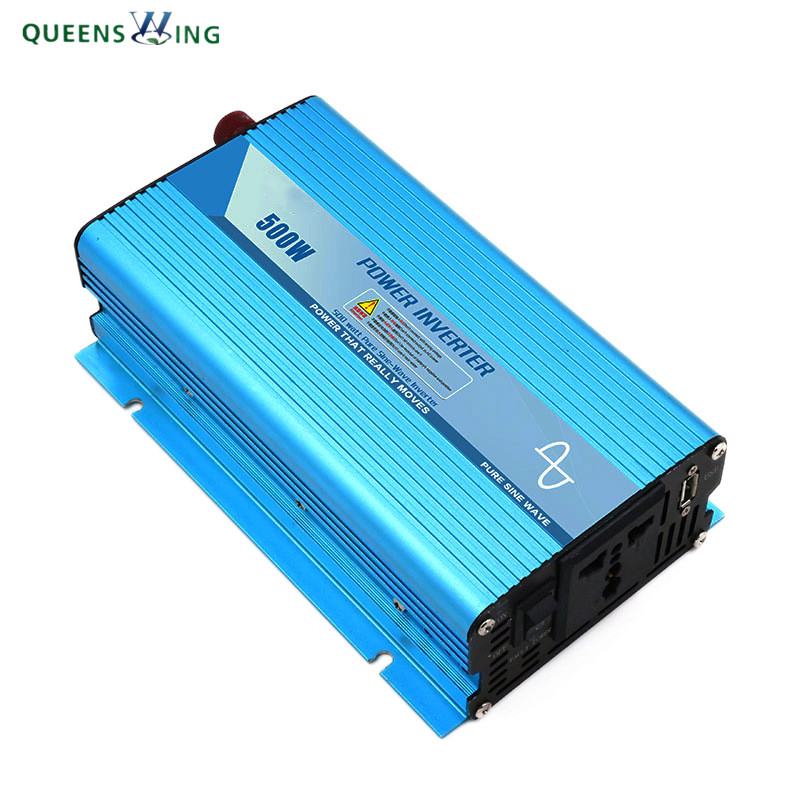

12V 220V 500W Pure Sine Wave Portable Power Inverter (QW-P500)

Introduction:
QW-P500 is Pure sine wave inverter which converts DC power to AC power for household appliances, solar devices and telecommunication equipments when there is no grid power.

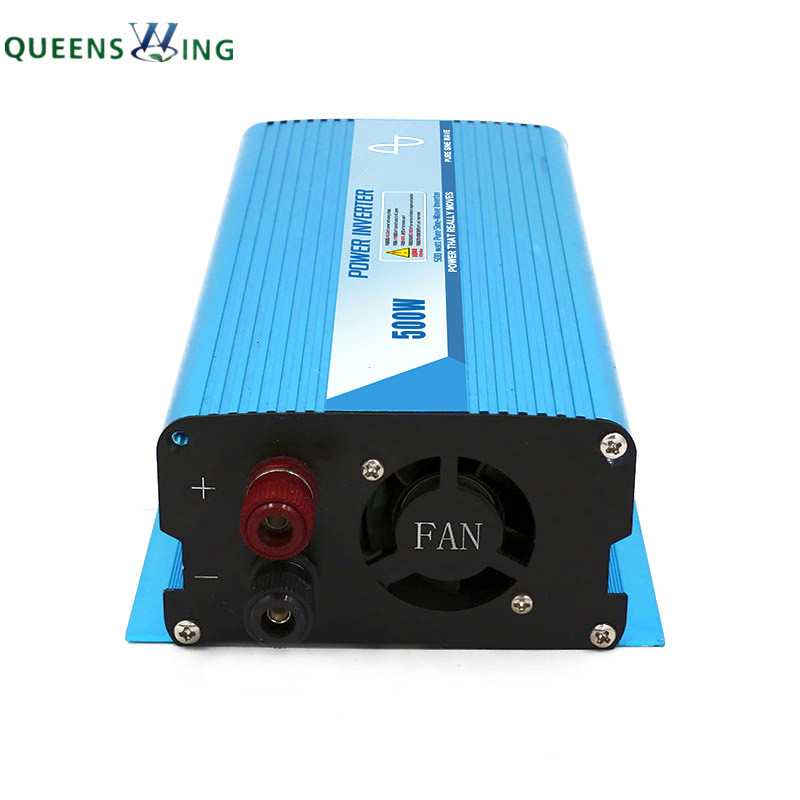

To prevent damages to this inverter, soft start and safe working performance such as short circuit protection are added into its standard design. The cool shell and inner fan also help improve its performance.

Features:
1. Conversion efficiency over 90%
2. Output 50Hz/220Vac pure sine wave suitable for Solar power system, all the home appliances and equipments, such as Mobile phone, Computer,Tablet, PAD, Camera, TV, Shaver, DVD, Fan, Lamp, Game machine, Induction Cooker, Computer, refrigerator, Air conditioner etc.

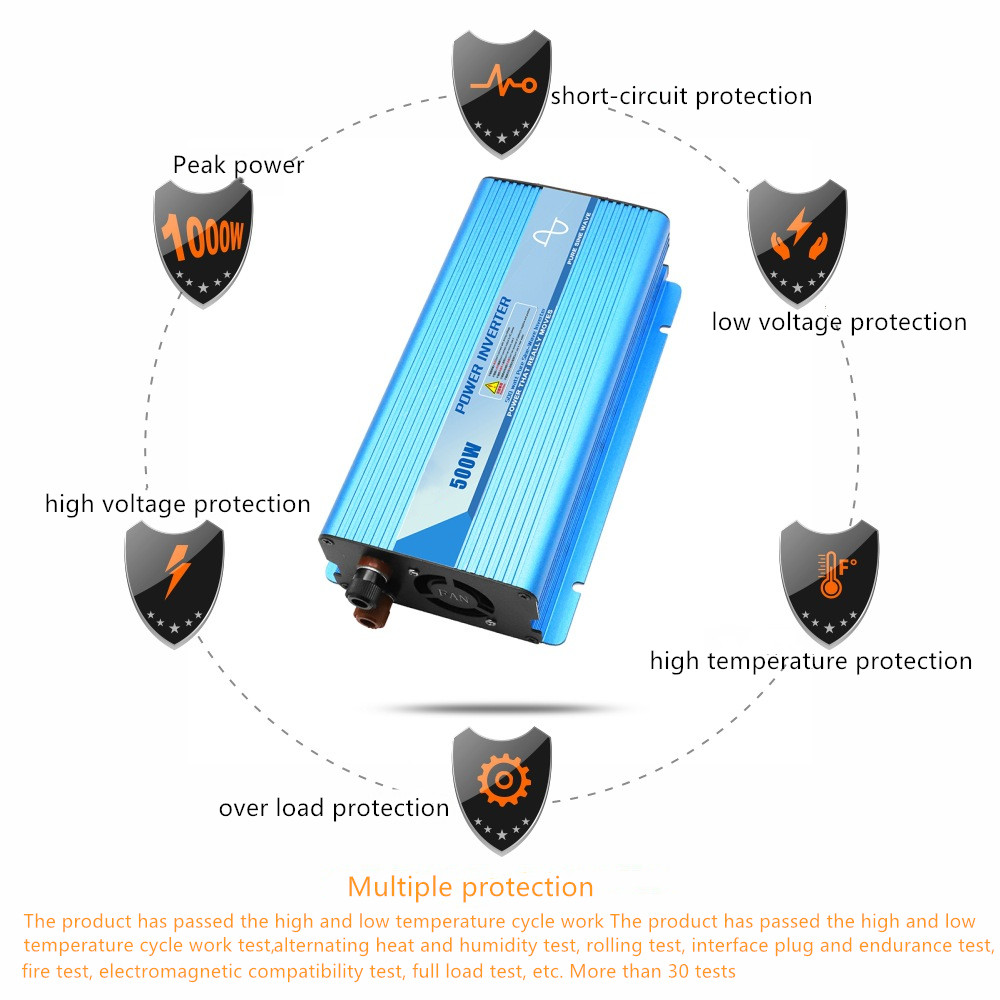

3. High Stability: Since it has over voltage, under voltage, overload, overheating, short circuit, reverse and improved protection, stability of the system
4. Max 500W Continuous output power
5. Independent research and development design, adopting the latest technology and developments, and have a long operating life
6. Output are pure sine wave same as the mains power, never harm to any load.
7. Adopting the copper transformer, making the inverter working stable and reliable, and with more load capacity. Suitable for solar power system.

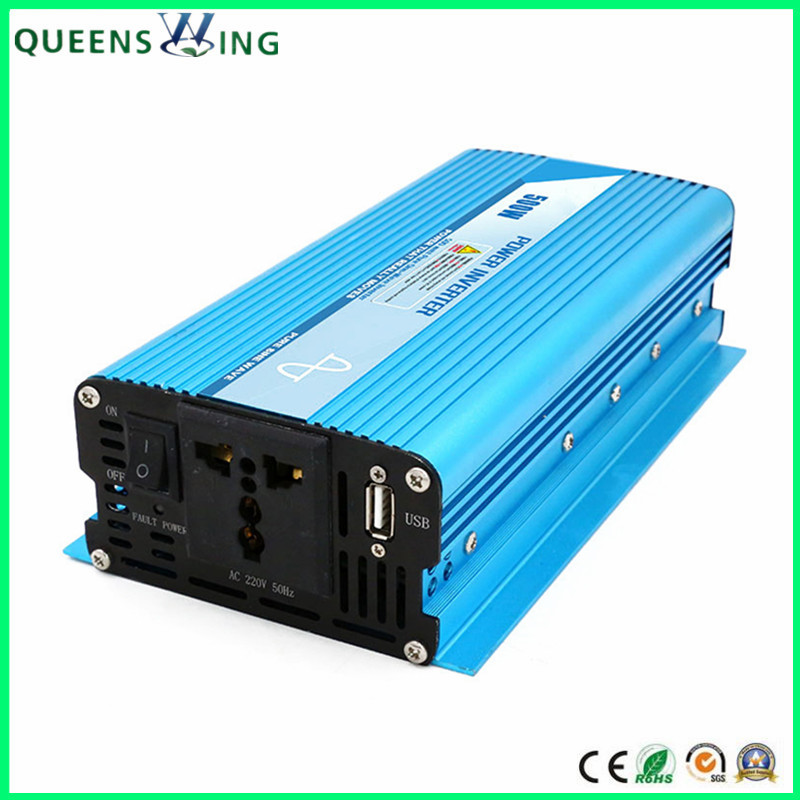

7. Multifunction socket suitable for worldwide plug application, such as American, European and Australian standard plug.


Technical Parameter:

500W PURE SINE WAVE POWER INVERTER
Output	Output Voltage	100/110/120/220/230/240VAC
	Rated Power	500W
	Peak Power	1000W
	Waveform	Pure Sine Wave
	Frequency	50Hz/60Hz
	Output Voltage error value	low & high 10%
	no-load loss	<7W
	Efficiency	>90%
Input	LED indicator	Working status,error status
	Input Voltage	10-15VDC
	Working Voltage	12VDC
Protections	Fuse	35A
	Low voltage alarm	10.5+0.3V
	Low voltage shut down	10+0.5V
	Over voltage shut down	15.5+0.5V
	Over load shut down	600W over 10 seconds
	Overheat shut down	>75ºC
	Overheat	Output shut off
	Working temperature	'-10ºC and +50ºC
	soft-start
Packing	Product Size	218*150*70mm
	Inner box size	240*175*95mm
	Outer carton size	64*42.5*29cm
	Net weight	1.85±0.2KG
	Gross weight	16±1KG
	Packing Qty	8PCS/CTN

Application:
Wind generation, solar panel, home, office, car, board and some place that lack electricity. Ideally suitable for Journeys, Camping, Tents, Boat Trip, Working on the way and everywhere, where is no electricity!

Load:
1> Office equipment series: Computers, Printers, Copiers, Scanners, digital camera, etc.
2> Household appliances series: Vacuum cleaners, Fans, Lighting, Electric cutting knife, Television, Sewing machines, Electric fans, AC, etc.
3> Kitchen utensils series: Microwave ovens, Freezers, Coffee machines, Blenders, induction cooker, etc.
4> Electronics Series: TV, VCR, Game consoles, Radios, Power amplifiers, Audio equipment, Monitoring equipment, Terminal equipment, Intelligence platforms, Satellite communications equipment.
5> In-car or on-boat devices series: Military vehicle, police cars, medical ambulance, ships, traffic lights, and etc.
6> Industry equipments series: Solar energy, wind power, gas discharge lamp and etc.

User Guide
Application	Wattage	Inverter Wattage
		150W	300W	500W	800W	1000W	2000W	3000W	4000W
Mobile phone	5W	√	√	√	√	√	√	√	√
12 inch color television	16W	√	√	√	√	√	√	√	√
Video games console	20W	√	√	√	√	√	√	√	√
Electric light	25W	√	√	√	√	√	√	√	√
Satellite TV receiver	30W	√	√	√	√	√	√	√	√
CD or DVD player	30W	√	√	√	√	√	√	√	√
HiFi stereo 4-Head VCR	40W	√	√	√	√	√	√	√	√
Guitar amplifier (at average volume)	40W	√	√	√	√	√	√	√	√
Stereo system (at average volume)	55W	*	√	√	√	√	√	√	√
Electric fan	55W	√	√	√	√	√	√	√	√
Notebook	60W	√	√	√	√	√	√	√	√
GE 9 inch color TV/radio/cassette	65W	√	√	√	√	√	√	√	√
19 inch color TV	80W	√	√	√	√	√	√	√	√
20 inch VCR combo	110W	√	√	√	√	√	√	√	√
27 inch color TV	170W		√	√	√	√	√	√	√
Stereo amplifier	250W		*	*	√	√	√	√	√
Small-medium printer	350W			*	*	*	√	√	√
Home theater system	400W			*	*	*	√	√	√
Power drill	400W			√	√	√	√	√	√
Rice cooker	500W			√	√	√	√	√	√
Small coffee machine	600W				*	*	√	√	√
Refrigerator	750W				*	*	*	√	√
Small microwave oven	800W				*	*	*	√	√
Toaster	1000W					*	*	√	√
Hair dryer	1000W						√	√	√
Full size microwave oven	1500W						*	*	*
Electric kettle	1800W						√	√	√
Induction cooker	2000W						*	*	*
washing machine	2500W							*	*
Air conditioner 16000BTU	2500W								*
Air compressor 3HP	2800W								*
Heavy duty power tools	2800W								*
Air conditioner 22400BTU	3500W								*
Note: For those starred models, pure sine wave inverters are preferred.

Payment Terms:
T/T, Western Union, Money Gram
Production arranged after receipt of payment.

Lead Time:
Sample order will be delivered within 7 working days.
Order quantity below 100PCS, delivery time is 7-15 working days.
Container order will be delivered within 15-30 working days.

Shipment:
Courier: FedEx, DHL, TNT, UPS, Aramex, EMS ect.
Forwarder: By sea / air or Customer designated


FAQ:

1. What is inverter?
Inverter is an electronic equipment that turn 12v/24v/48v dc into 110v/220v ac.

2. What is the difference between the inverter with UPS + charger and inverter with charger?

A2: UPS inverter: When the mains is on, the current through the inverter power to the load, and at the same time charge the battery. When mains drops, it will automatic transfer and let the battery to supply power for the load: Current flow direction is: Battery - inverter - Load.

With battery without UPS inverter: When the mains is on, the main electricly charge the battery, and the current of the battery through the inverter power to the load, always use battery power, without automatic transfer function.


3. What can a UPS do for me?

A1: Every UPS will supply power to a load (such as a computer, telephone switch or medical equipment) when mains power fails, it may also condition the power and prevent spikes, brownouts, interference and other unwanted problems from reaching the supported equipment.
