Products > Battery > Gel Battery > Gel Solar Battery of 12V 65A
Product name : Gel Solar Battery of 12V 65A
Item : QW-BG65A
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

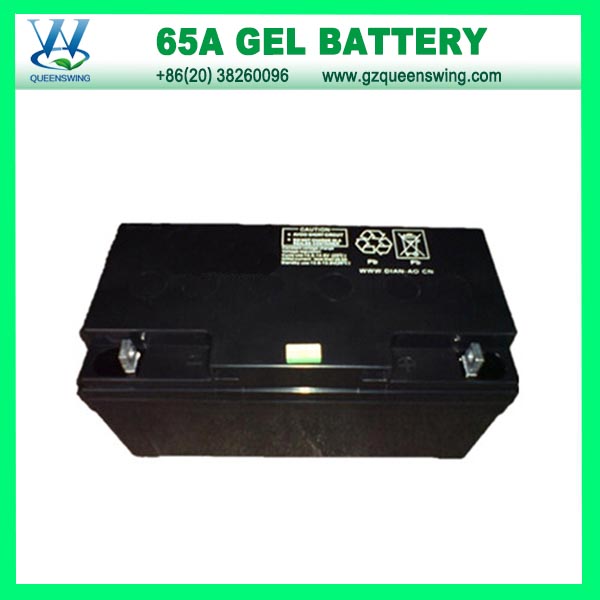

 Gel Solar Battery of 12V 65A


QueensWing Battery:
Vrla battery: 12V 5A 7A 12A 17A 24A 38A 65A 100A 120A 150A 200A
Gel battery: 12V 5A 7A 12A 17A 24A 38A 65A 100A 120A 150A 200A

Main Characteristics:

1. Maintenance-Free Operation
Absorbent glass mat (AGM) technology ensures efficient gas recombination up to 99% and freedom from electrolyte maintenance. During the expected float service life of Prostar batteries, no need to check the specific gravity of the electrolyte or add water.

2. Good Discharging Ability
Tight assembly technology ensures an excellent high-rate discharge performance.

3. Long Service Life
A unique corrosion-resistant grid alloy ensures Prostar batteries have long service life.

4. Low Self Discharge
Using high purity raw materials ensures Prostar batteries have less self-discharge.

5. Environmental & Non-polluting
Gas Recombination technology ensures the battery high seal reacting rate, which can prevent the acid fog from separating out.

Applied Scope:
1)Communication Systems: Switch, Microwave Stations, Mobile Base Stations, Data Centers,
Radio and Broadcasting Stations.
2)Motivity Field: Robots, Electric Toys, Electric Tools&Portable Vacuum Cleaners.
3)Solar&Wind Power Generation Systems
4)EPS&UPS Systems

Specifications:

Nominal Voltage 12V
 Nominal Capacity (20 hour rate) 65Ah
Capacity
25 o C
(77°F)
10 hour rate (3.61A) 60Ah
5 hour rate (11.9A) 55Ah
1 hour rate (43.2A) 43.2Ah
Internal Resistance Full Charged Battery 25 o C
≤7.0mΩ
Capacity affected by Temperature
(10 hour )
40 o C
(104°F)
102%
25 o C
(77°F)
100%
0 o C
(32°F)
85%
-15 o C
(5°F)
65%
Self-Discharge
25 o C
(77°F) Capacity
after 3 month storage 90%
after 6 month storage 80%
after 12 month storage 62%
Charge (Constant Voltage) 25 o C
(77°F)
Float
Initial Charging Current Less than16.3A
Voltage 13.6-13.8V
Cycle Initial Charging Current Less than16.3A
Voltage 14.4-14.9V
Battery Dimensions Length 351mm
Width 167mm
Height 176mm
Total Height 176mm
Box Dimensions Length 365mm
Width 181mm
Height 224mm
Quantity Per Box 1 PC per box
Net weight Per Cell 20.5 kg±200g
Net weight Per Box 20.5kg
Gross Weight 21.0kg
