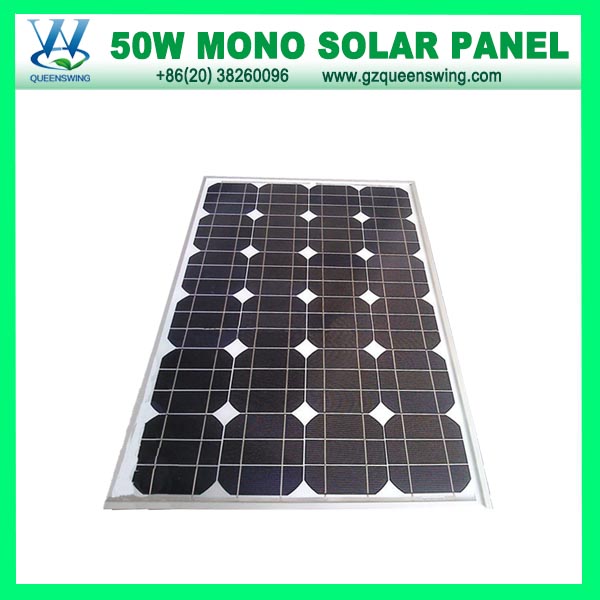

Product name : 50W Mono Solar Panel
Item : QW-M50W
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
50W Monocrystalline Silicon solar panel

Limits
Operating temperature -40° C to +85° C
Maximum system voltage 1000VDC

Temperature and Coefficients
NOCT48° C± 2° C
Current temperature coefficient%/° C0.037
Voltage temperature coefficient%/° C-0.34
Power temperature coefficient%/° C-0.48
NOCT: Nominal Operation Cell Temperature

Additional Data
Number of cells and type of connection24, serial connection
DimensionsLength: 830mm
Width: 550mm
Height: 35mm
Net weight5.5kgs/pc
Gross weight12kgs/ctn(2pcs/ctn)
Package dimension848X580X85mm
Container loading1800PCS/40'HQ 2PCS/CTN
1584PCS/40'GP 2PCS/CTN
792PCS/20'GP 2PCS/CTN
STC: Irradiance of 1000W /m2, Air Mass of 1.5, Cell Temperature of 25° C

Guaranteed Power Output
Warranted Tolerance: ± 5%15 year: 90% of its nominal power rating
25 year: 80% of its nominal power rating
Impact ResistanceCan bear the force that is generated by one 227g
Steel ball fall down from 1m height
Warranty period10 years: Materials and workmanship defects
CellsMonocrystalline silicon photovoltaic cell


Electrical Data

MONO

PWM-50W

PWM-55W

PWM-60W

Nominal peak power(Pmax)

50Wp

55Wp

60Wp

Maximum power voltage(Vmp)

16.4V

17.0A

18A

Maximum power current(Imp)

3.05A

3.24A

3.34A

Short-circuit current(Isc)

3.32A

3.42A

3.59A

Open circuit voltage(Voc)

20.8V

21.4V

22V

Optimized cell efficiency(η)

14.80%

16.20%

17.80%

Power tolerance: ±3%
