Products > Hybrid Solar Inverter > Hybrid Solar Inverter with inbuilt MPPT Controller > 3.5kw 24V Wifi Monitoring Hybrid Solar Inverter with 110A MPPT Solar Controller Maximum PV Array 500VDC Power 5000W(can work without battery)

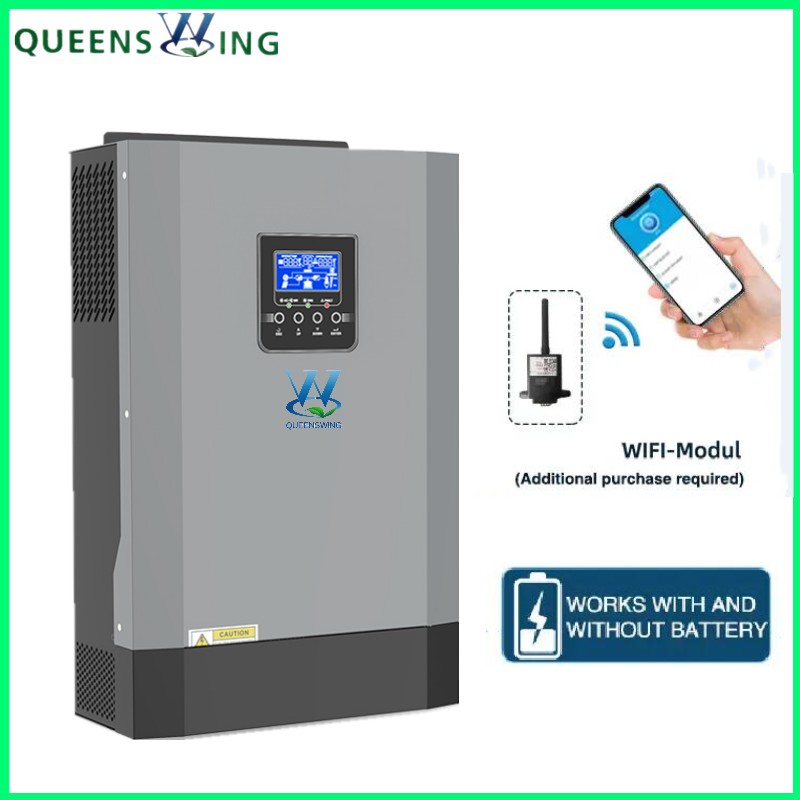

Product name : 3.5kw 24V Wifi Monitoring Hybrid Solar Inverter with 110A MPPT Solar Controller Maximum PV Array 500VDC Power 5000W(can work without battery)
Item : QW-3.5KW24110
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
3.5kw 24V Wifi Monitoring Hybrid Solar Inverter with 110A MPPT Solar Controller Maximum PV Array 500VDC Power 5000W(can work without battery)(QW-3.5KW24110)
)

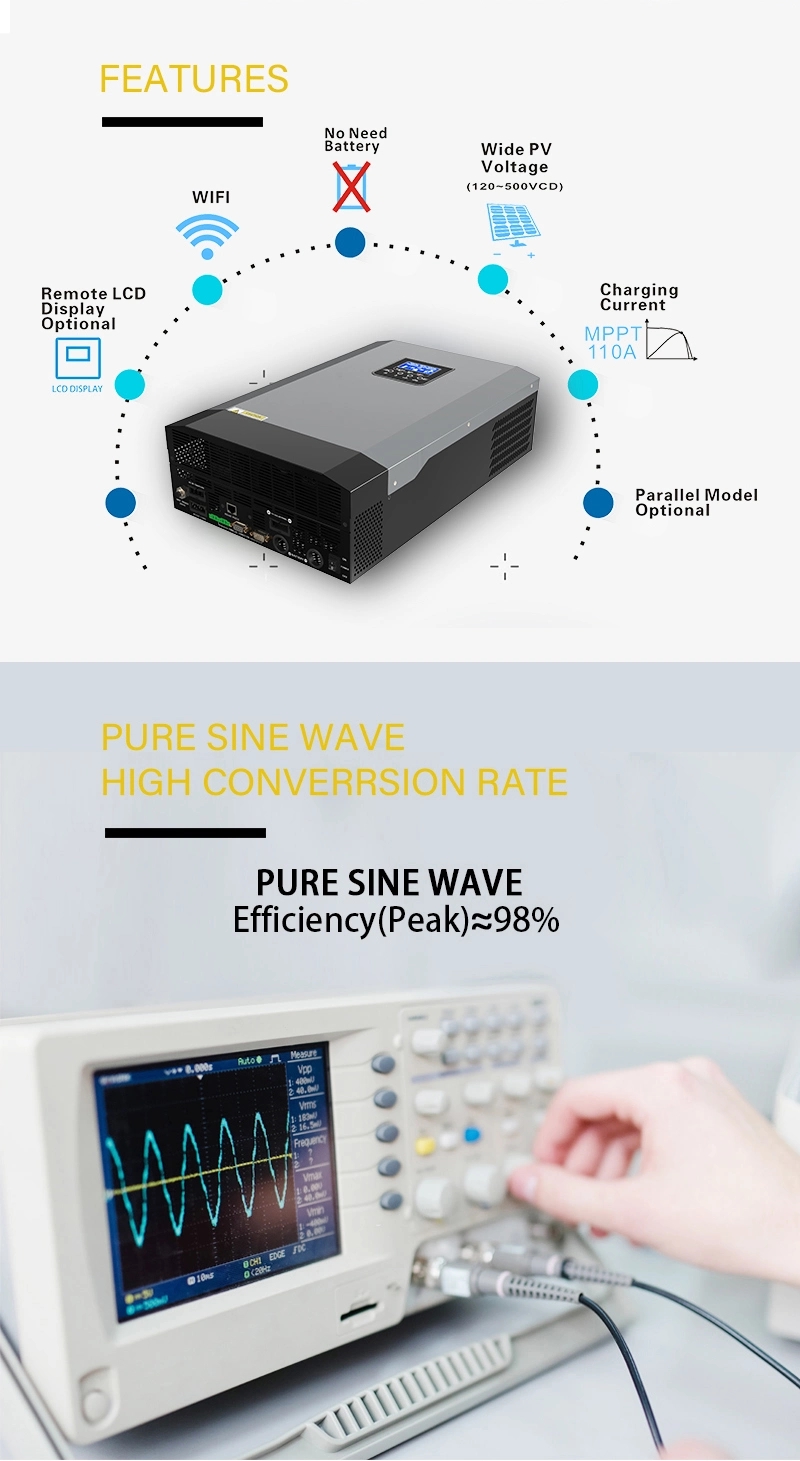

Product Features
• Pure sine wave inverter
• Output power factor 1.0

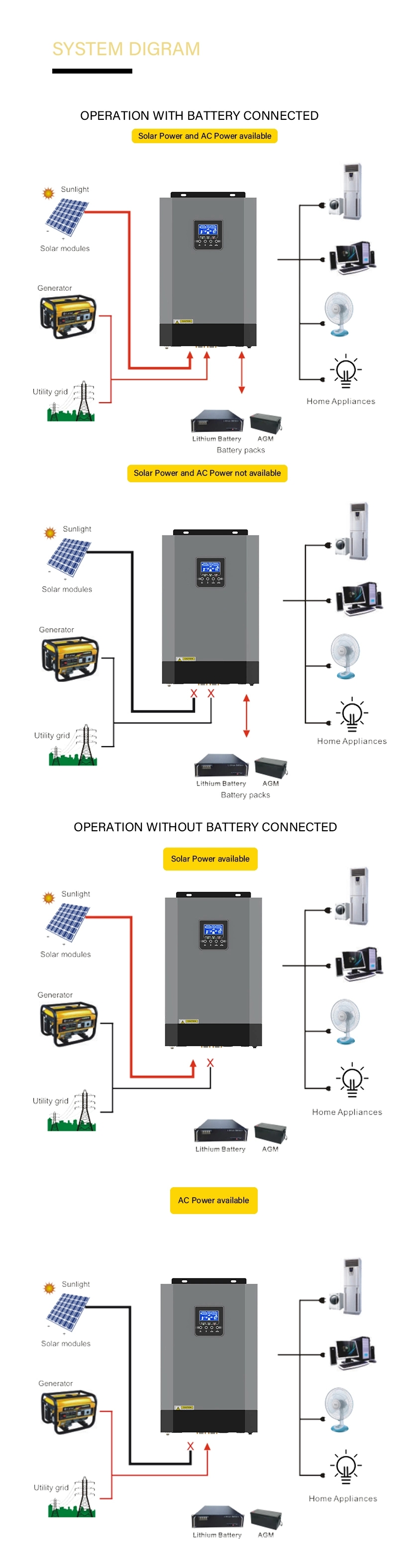

• Programmable supply priority for PV, Battery or Grid
• Wide PV input voltage range(120~500VDC)
• Built-in 110A MPPT solar charge controller, 80A AC charger
• Max. PV Array Power: 5000W
• Compatibe with lithium-ion battery
• Working with or without battery in sunny day
• Smart battery charge design to optimize battery life
• Overload,high temperature,inverter output short circuit protection
• Cold start function
• Intelligent fan speed adjustment
• Selectable charging current based on applications
• Configurable AC/Solar input priority via LCD setting
• Compatible to mains voltage or generator power
• Auto restart while AC is recovering

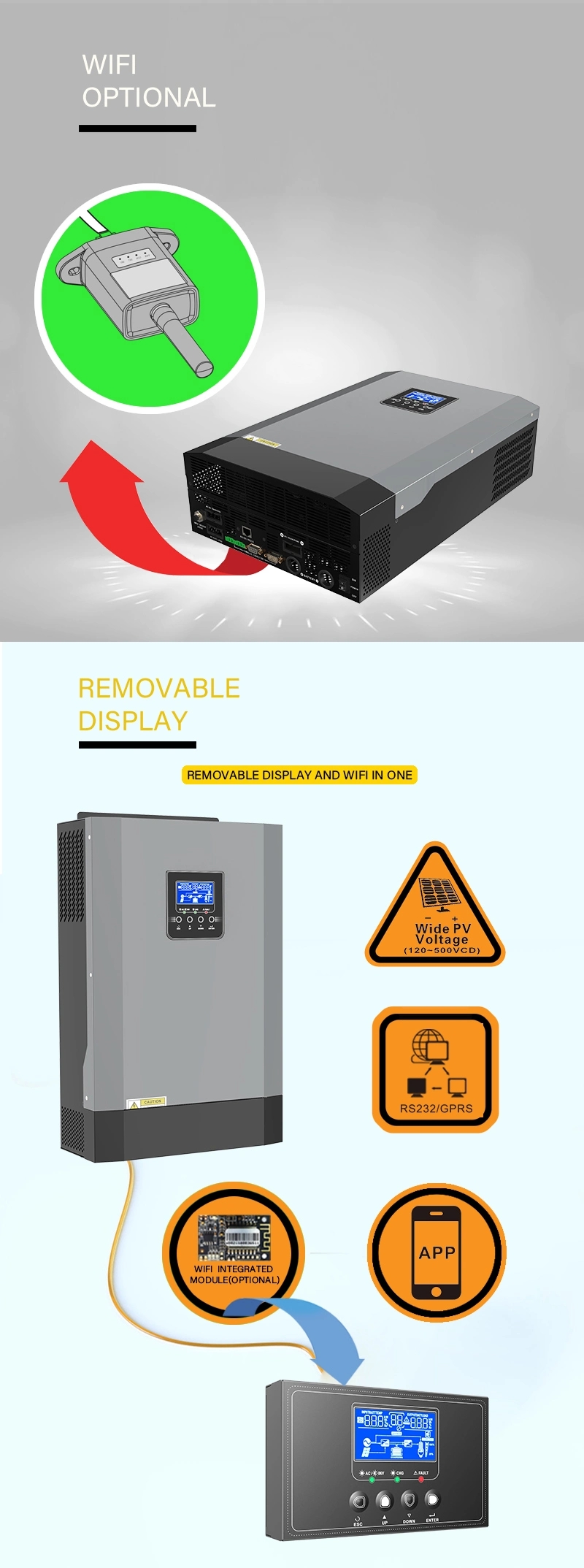

• WIFI&GPRS available for IOS and android(optional)

Product Overview

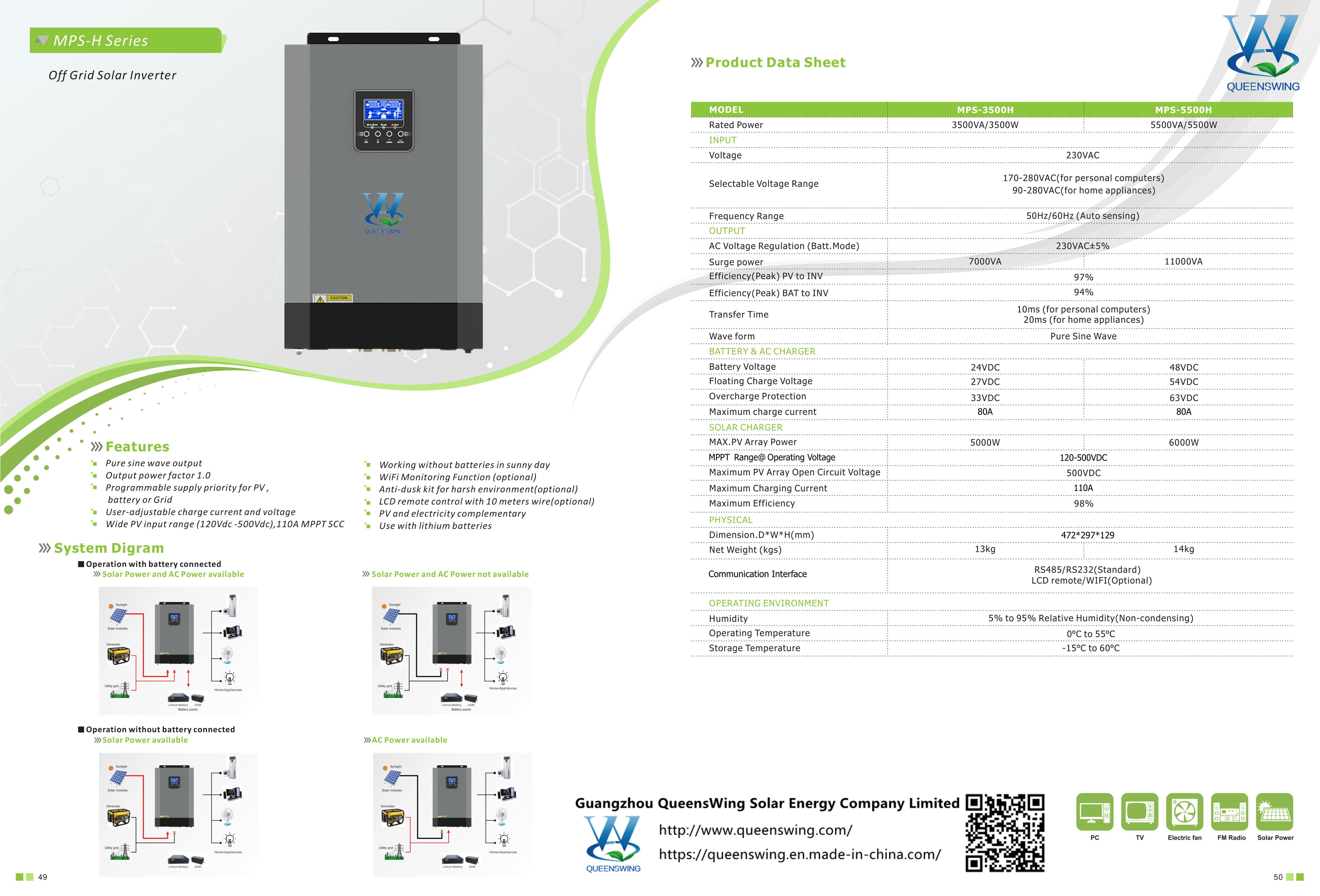

Technical Data

3.5kw 24V Wifi Monitoring Hybrid Solar Inverter with 110A MPPT Solar Controller Maximum PV Array 500VDC Power 5000W(can work without battery)

Model

3.5KW

5.5KW

Rated Power

3500W

5500W

INPUT

Voltage

230VAC

Selectable Voltage Range

170-280 VAC(For Personal Computers)
90-280 VAC(For Home Appliances)

Frequency Range

50 / 60Hz (optional)

OUTPUT

AC Voltage Regulation(Batt. Mode)

230 VAC ± 5%

Surge Power

7000W

11000W

Transfer Time

10 ms (For Personal Computer)
20 ms (For Home Appliances)

Waveform

Pure Sine Wave

BATTERY & AC CHARGER

Battery Voltage

24 VDC

48 VDC

Floating Charge Voltage

27 VDC

54 VDC

Overcharge Protection

33 VDC

63 VDC

Maximum AC Charge Current

80A

80A

SOLAR CHARGER

Maximum PV Array Power

5000W

6000W

MPPT Range @ Operating Voltage

120-450VDC

120-450VDC

Maximum PV Array Open Circuit Voltage

500VDC

500VDC

Maximum Charging Current

110A

110A

Maximum Efficiency

98%

98%

PHYSICAL

Dimension, D x W x H(mm)

480x300x130mm

480x300x130mm

Gross Weight(kg)

11

12

Communication Interface

RS232(Standard)
GPRS/WIFI(Optional)

OPERATING ENVIRONMENT

Humidity

5% to 95% Relative Humidity(Non-condensing)

Operating Temperature

-10ºC - 55°C

Storage Temperature

-15ºC - 60°C

Product specifications are subject to change without further notice

MODEL

3.5KW

5.5KW

Inverter Power

3500W

5500W

Pmax.generated from solar charger

110Amp, 5000W

110Amp, 6000W

Best Panel Configuration

250Wp x 20pcs
(10pcs in serial, 2sets in parallel)

250Wp x 24pcs
(12pcs in serial, 2sets in parallel)
