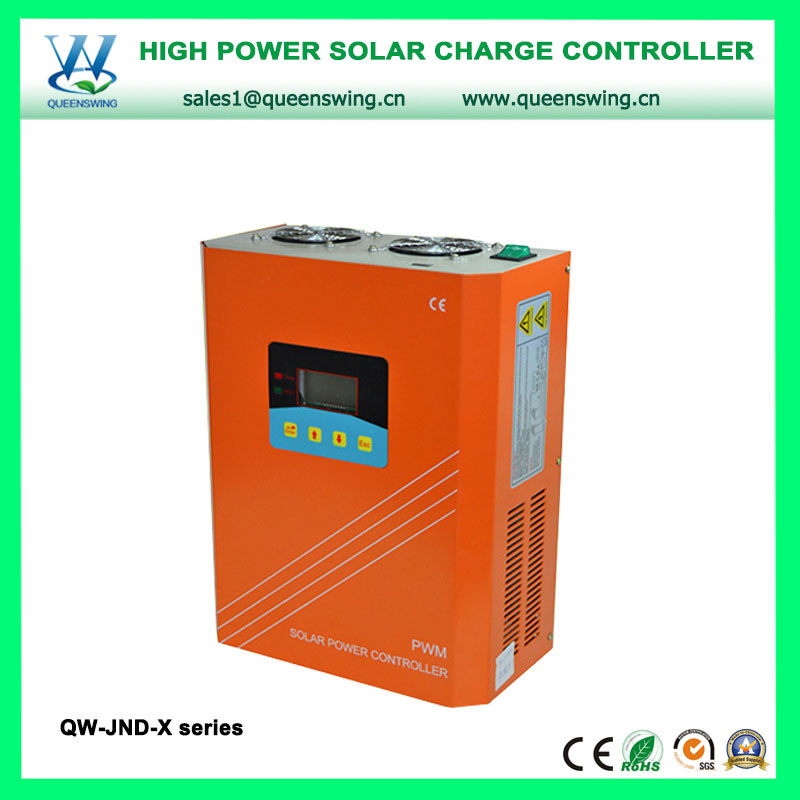

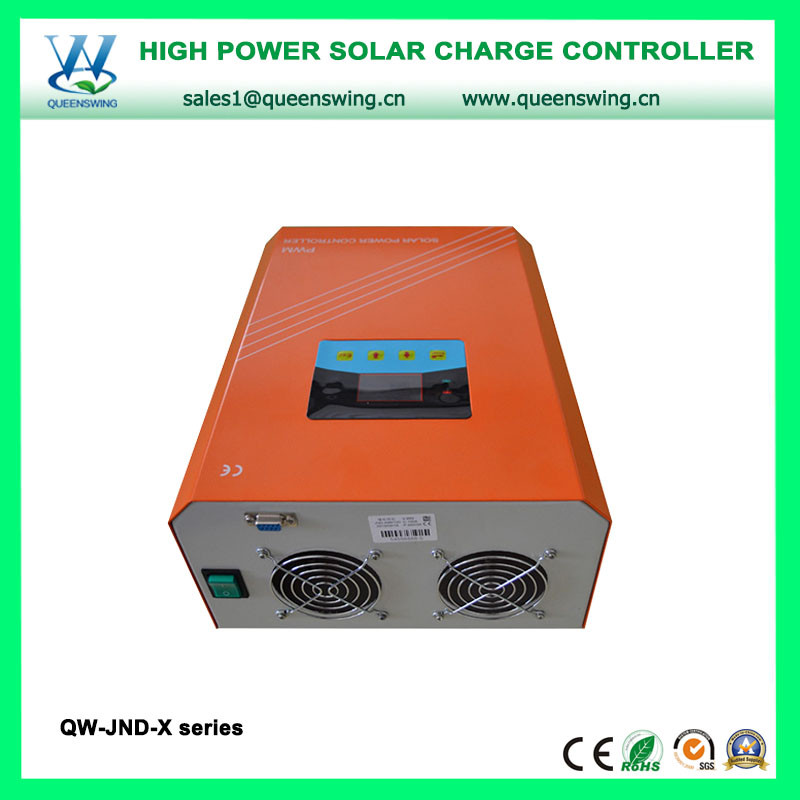

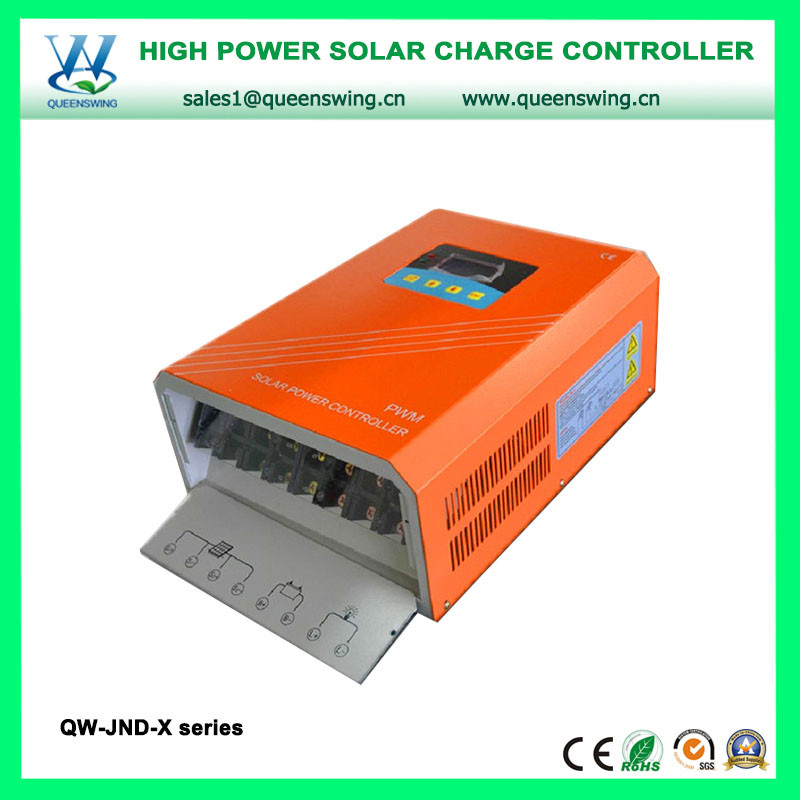

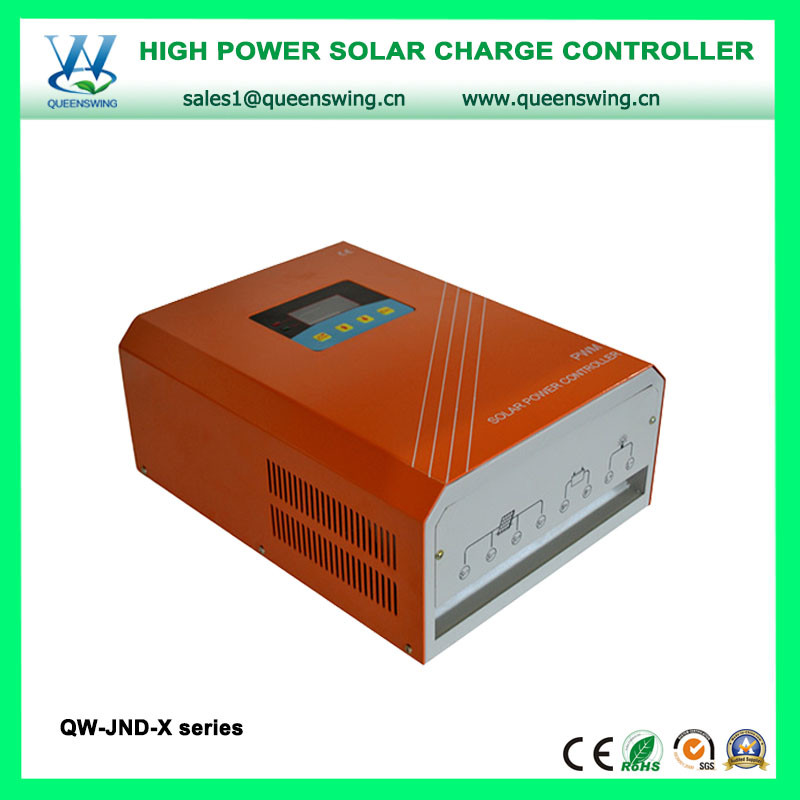

Product name : 100A/150A/200A high power solar charge controller
Item : QW-JND-X Series
Price : Please contact us
 Enlarge Image                   Back
             [Next Product]→


Details:

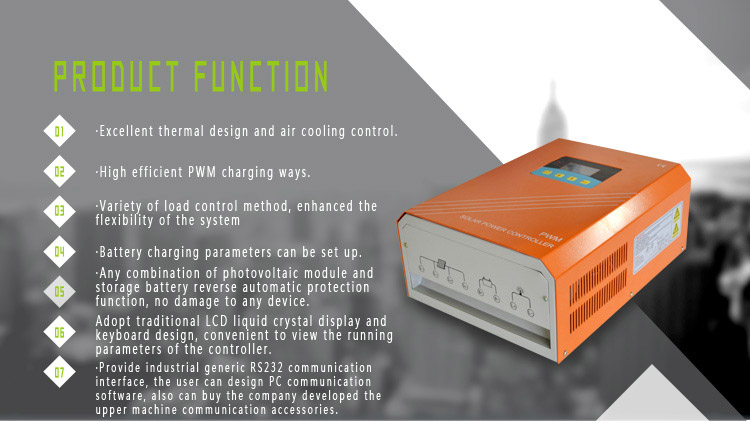

Features:

* Excellent thermal design and air cooling control
* high efficient PWM charging ways
* Variety of load control method, enhanced the flexibility of the system
* Battery charging parameters can be set up
* any combination of photovoltaic module and storage battery reverse automatic protection function, no damage to any device
* Adopt traditional LCD liquid crystal display and keyboard design, convenient to check the running parameters of the controller, can bring the output, need to customize.



Technical Parameter:
Technical Parameter avaible models
Rated Voltage 24VDC 48VDC 120VDC 96VDC 192VDC 220VDC 240VDC
Charge Current 100A、150A、200A 50A、100A、
Battery terminals maximum voltage 35V 70V 160V 140V 280V 300V 320V
The largest pv input voltage 50VDC 100VDC 250VDC 200VDC 400VDC 400VDC 400VDC
Minimum pv input voltage 29VDC 58VDC 150VDC 116VDC 240VDC 370VDC 300VDC
The largest photovoltaic power input 4.8kw 9.6kw 24kw 19.2kw 19.2kw 21.6kw 24kw
Static loss <0.2A
Charging circuit of pressure drop ≤0.5V
Discharge circuit of pressure drop ≤0.5V
battery Control parameters
Over-voltage disconnect 30V 60V 150V 120V 240V 270V 300V
Charging voltage limit 29V 58V 145V 126V 232V 261V 290V
The overpressure disconnect recovery voltage 28V 56V 140V V 224V 252V 260V
The equilibrium voltage —— —— —— —— —— —— ——
Increase the voltage 28.4V 56.8V 146V 113.6V 232V 261V 292V
Float charging voltage 27.6V 55.2V 135V 110.4V 216V 243V 270V
Under voltage disconnect recovery voltage 25V 50V 125V 100V 200V 225V 250V
Under voltage disconnect voltage 21.6V 43.2V 108V 86.4V 172.8V 194.4V 216V
Duration of equilibrium —— —— —— —— —— —— ——
Increase the duration of the 2 hours
Environmental parameters The parameter value
Working environment temperature range -35℃TO+55℃
Storage temperature range -35℃TO+80℃
Humidity range 10%-90%No condensation
Protection grade IP30
The altitude ≤3000m
The mechanical parameters The parameter value
Overall dimensions 355*273*142(mm)
The installation hole size 295mm x 353mm
The installation hole size Φ7
terminal 24mm2
The net weight 7.5kg 7.5kg 8.5kg 8.5kg 9.5kg 9.5kg 9.5kg
