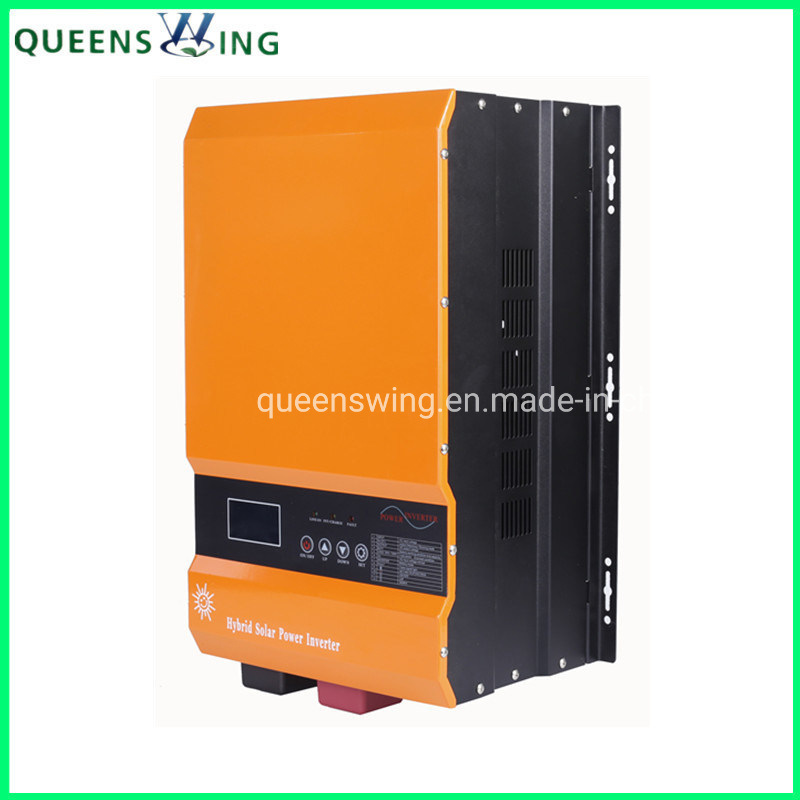

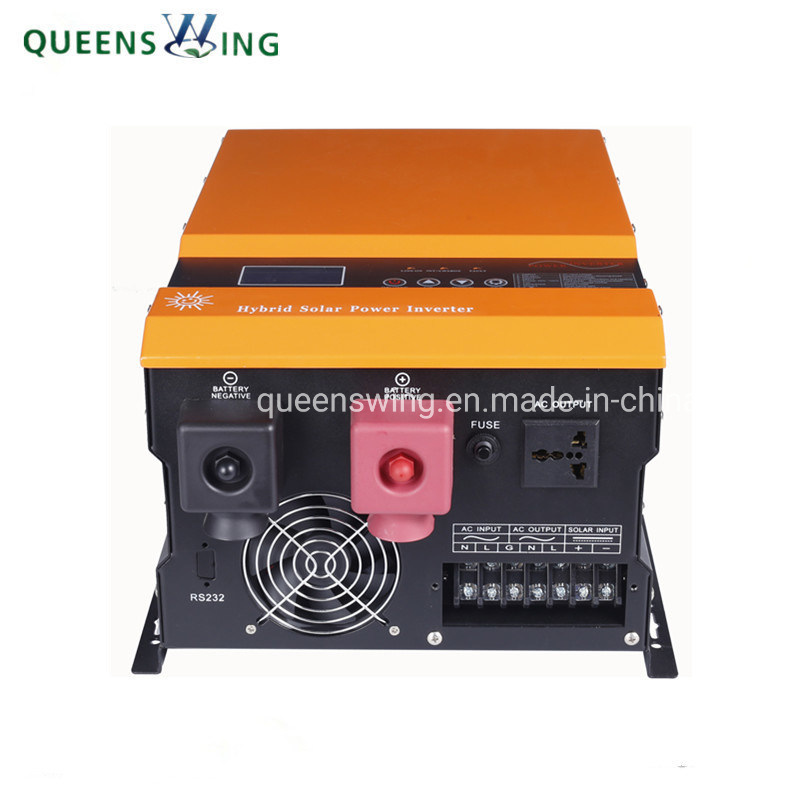

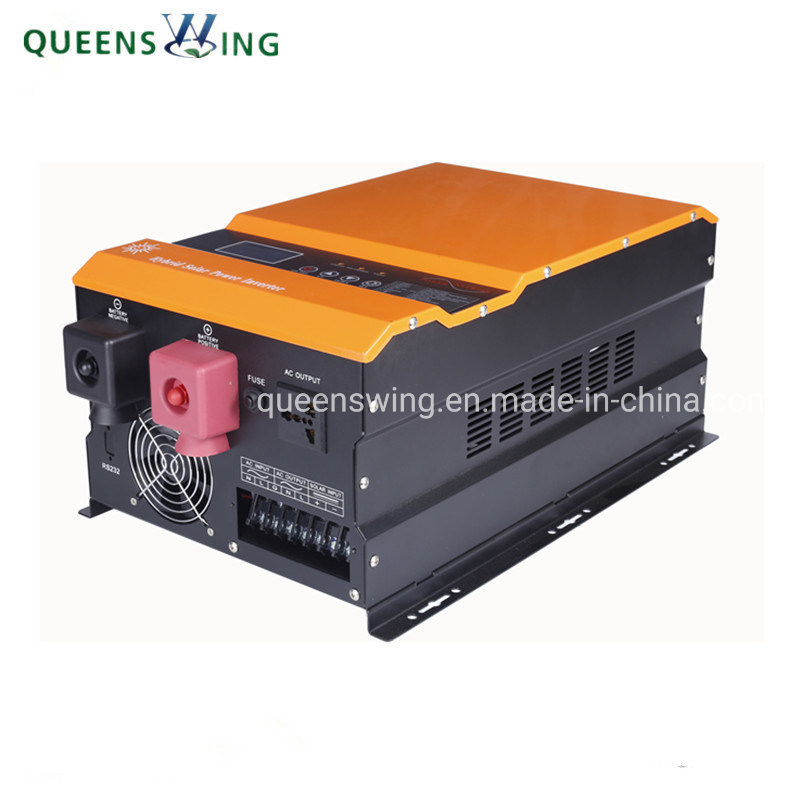

Product name : off Grid 6KVA/4KW 24/48VDC Hybrid Solar Power System Pure Sine Wave Inverter Built in MPPT 50A Controller
Item : QW-S6K50
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
off Grid 6KVA/4KW 24/48VDC Hybrid Solar Power System Pure Sine Wave Inverter Built in MPPT 50A Controller

Features and function
Pure sine wave output.Rate power1KW-10KW
Have UPS function and 35A AC charger
Against overload, short-circuit Protection
Under-voltage and over-temperature protection
Over voltage, battery reverse connection(optional)
High-low voltage protection
Built in MPPT or PWM solar controller
Can choose different types of batteries
Selectable solar battery priority or utility priority
LCD display inverter and solar information

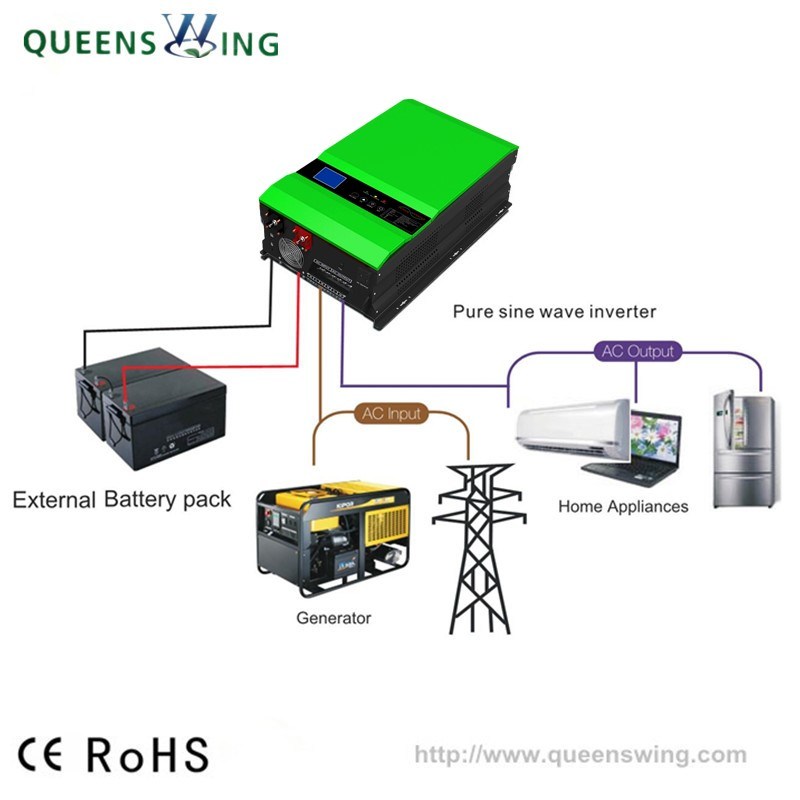

Application of solar energy system:
This is a pure sine wave inverter with AC big current charge,
LCD display offer users-configurable and clear data .
Easy-to-operate button operation such as battery type and
Battery or city power priority, battery voltage, load ,Input and
output voltage query. It can use for solar power system ,light,
radio, DVD, TV set, fans, freezer, computers, small hand-drill,
communication equipment and the other house appliance.





Specification

Model

1000W

1500W

2000W

3000W

4000W

5000W

6000W

8000W

10000W

Input

Rated capacity

1000W

1500W

2000W

3000W

4000W

5000W

6000W

8000W

10000W

Peak power

3000W

45000W

6000W

9000W

12000W

15000W

18000W

24000W

30000W

Commercial Power range(VAC)

110VAC: 73 -- 137 120VAC: 80 -- 150

220VAC: 145 -- 275 230VAC: 152 -- 288 240VAC: 158 -- 300

Mains input frequency range

45--65HZ

Battery

DC Voltage

12VDC / 24VDC / 48VDC

48VDC

48VDC / 96VDC

DC input voltage range

12VDC: 10.5 - 15VDC   24VDC: 21 - 30VDC  48VDC: 42 - 60VDC

Charger

AC Charging

10A - 40A (set by yourself)

Output

Capable of starting electric motor

0.5HP

1HP

1.5HP

2HP

3HP

AVR voltage range(VAC)

110/120/220/230/240± 10% (Auto-sensing)

Battery over voltage protection

12VDC: 16.7VDC  24VDC:33.4VDC  48VDC: 66.8VDC

Battery over voltage alarm

12VDC: 15VDC  24VDC:30VDC  48VDC: 60VDC

Battery under voltage protection

12VDC: 10.5VDC  24VDC:21VDC  48VDC: 42VDC

Battery low voltage protection

12VDC: 10VDC  24VDC:20VDC  48VDC: 40VDC

Transfer time

Typical: 5ms(Including detection time)

Temperature protection

≥85 alarm ≥90℃ machine shut off

overload

IPS automatically shut down if overload exceeds 120% of normal value for 10 seconds, IPS automatically resume work if overload comes to rated load

Waveform

Pure sine wave

Frequency

Commercial power supply; shared frequency with commercial inversion state: 60/50± 0.5

Output frequency range

(electric supply mode)

Tracking automatically

Temperature

Operation Temperature

0℃ -- 70℃

Thermal method

Cooling fan in intelligent control≤ 42℃ fan rotates slowly to ≥45℃ fan rotates fast

Appearance

External Size(mm) (L*W*H)

510*325*215mm

645*325*215mm

765*320*250mm

Gross Size(mm) (L*W*H)

560*380*280mm

730*410*290mm

840*405*320mm

Net Weight(kg)

16

19

20

27

35

37

41

57

60

Gross weight(kg)

17

20

22

29

37

39

43

60

63
