Products > Low Frequency Power Inverter > Low Frequency Hybrid Solar inverter > 1kVA-15kVA Solar Inverter with Solar Controller and AC Charger

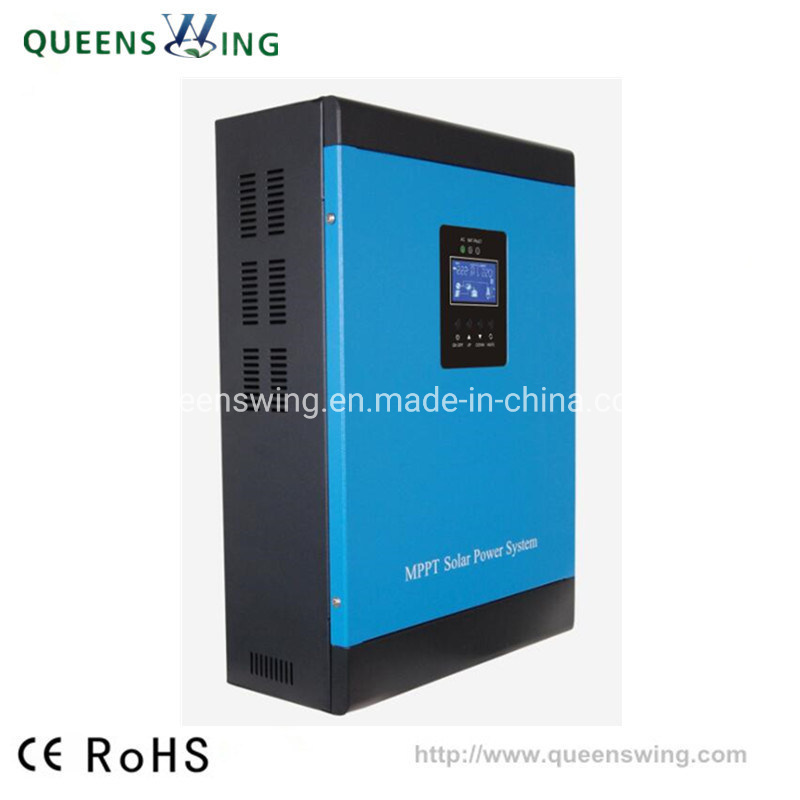

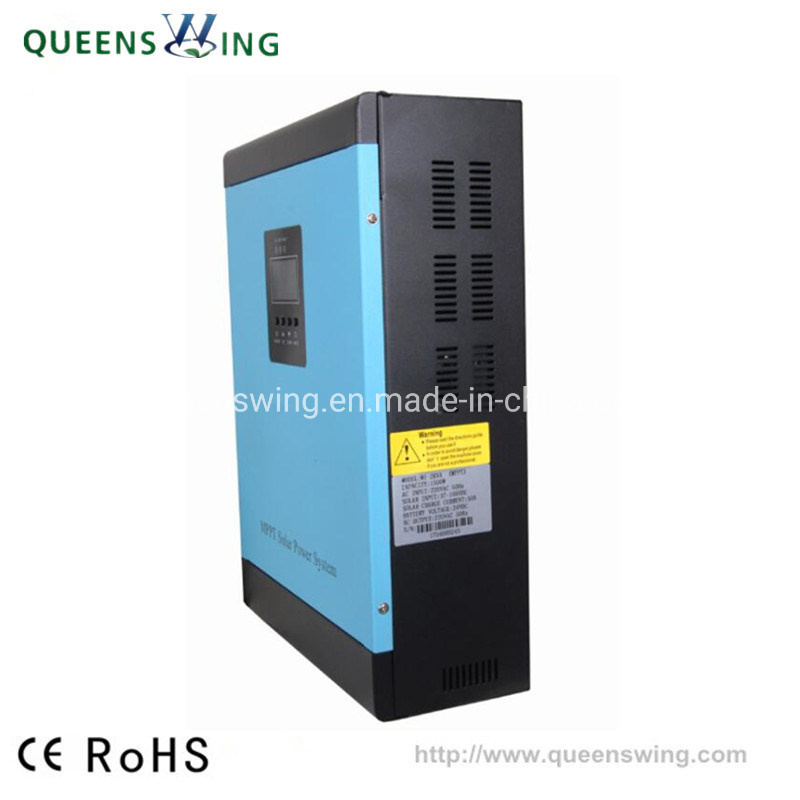

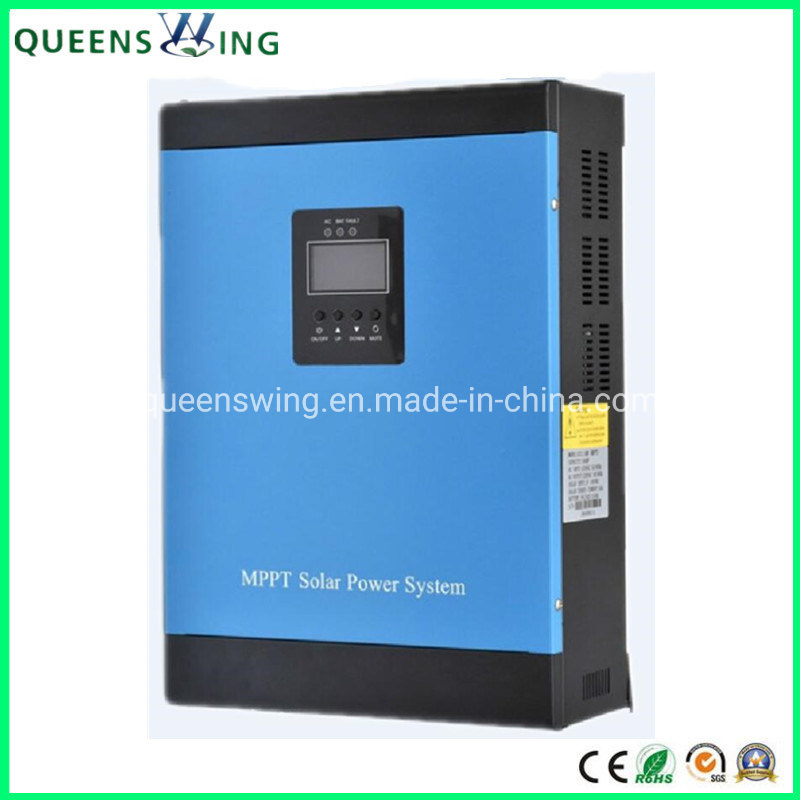

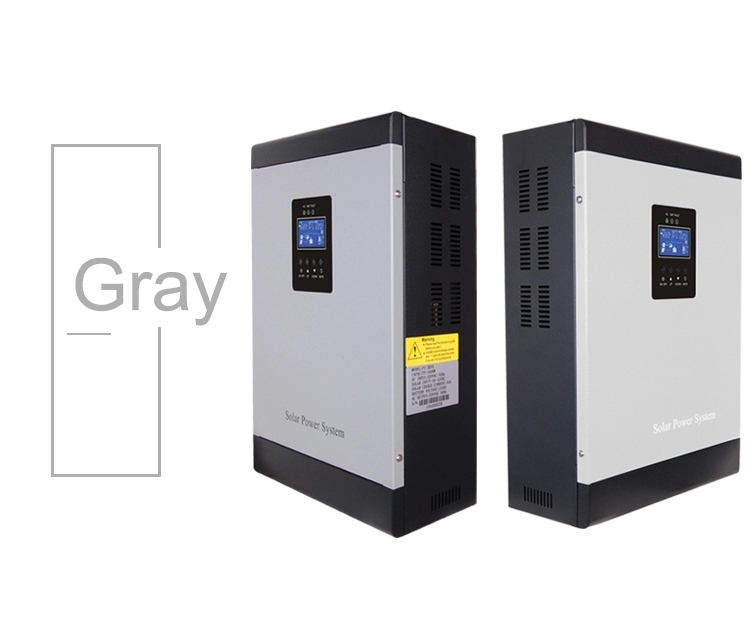

Product name : 1kVA-15kVA Solar Inverter with Solar Controller and AC Charger
Item : 15KVA
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
 1KVA/2KVA/3KVA/4KVA/5KVA/6KVA/7KVA/8KVA/10KVA/12KVA/15KVA Solar Inverter with Solar Controller and AC Charger

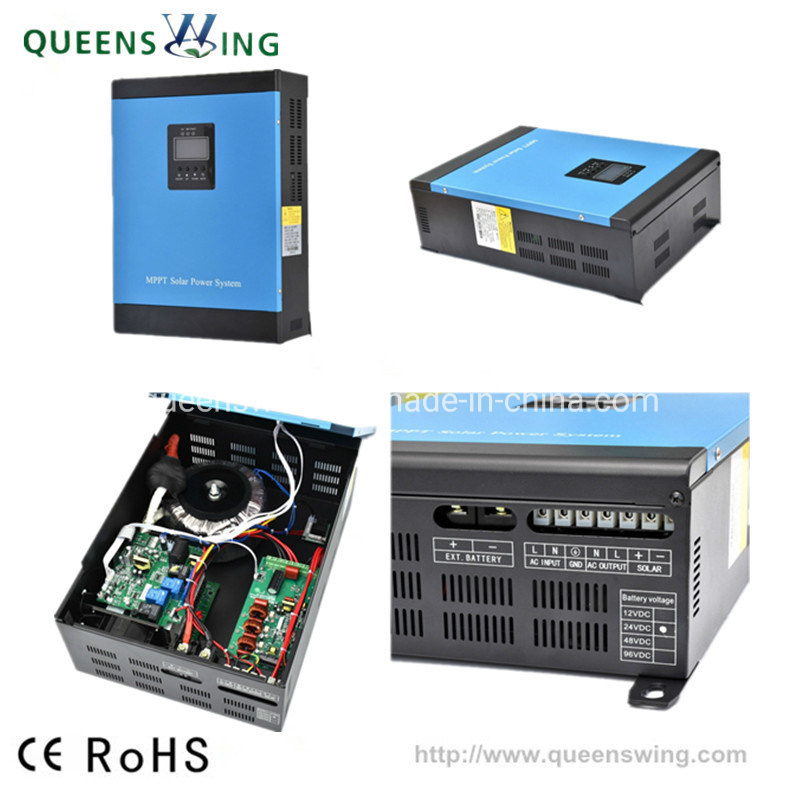

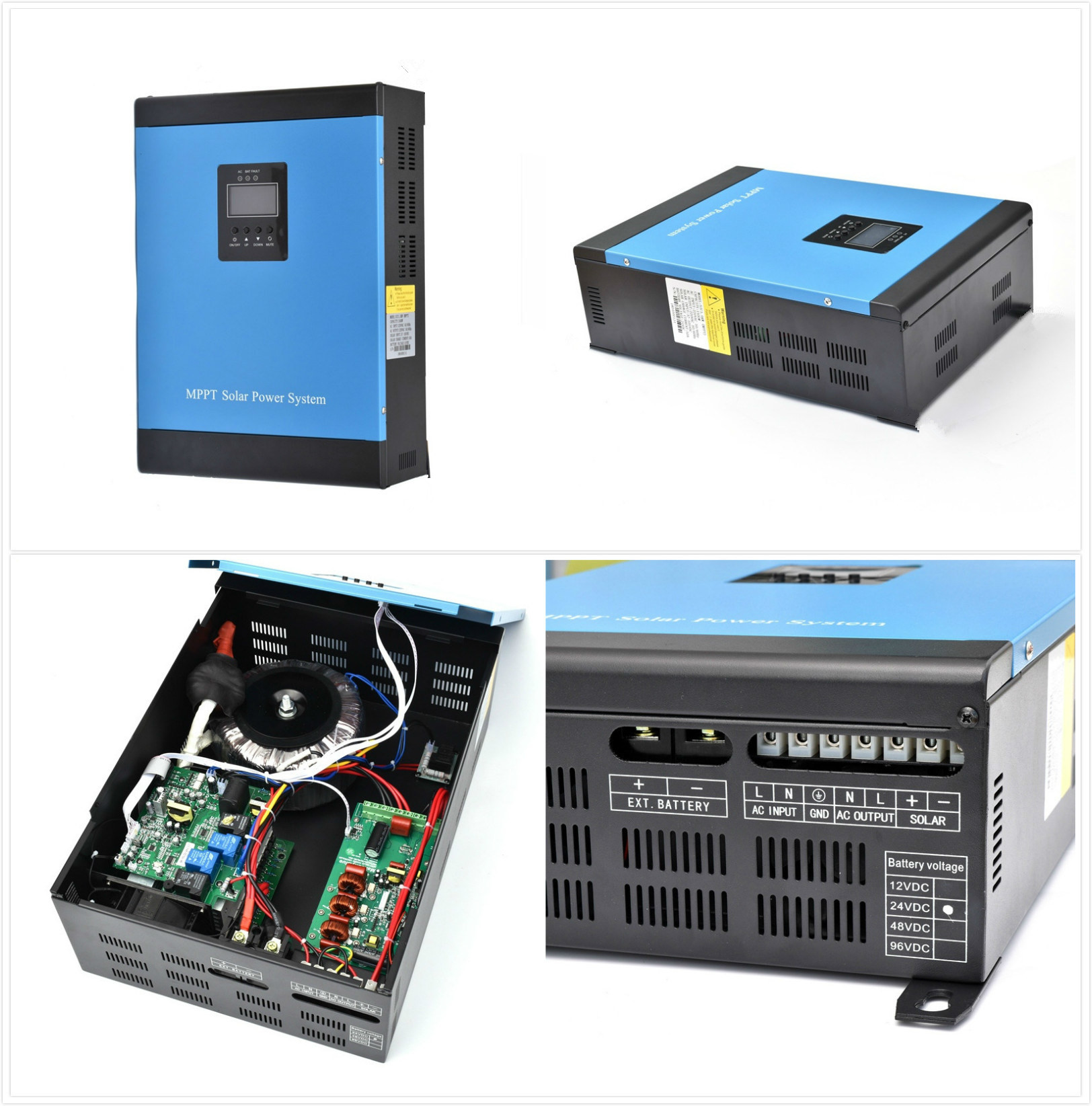

Transformer type(Big transformer built inside) Pure sine wave Solar inverter + MPPT / PWM solar charger+AC charger inside, Low frequency techonlogy , Configurable AC/Solar input priority via LCD setting. Wall mounted design. AC Output: 220V or 110V.



Features

1. PWM/MPPT charge controller built inside.

2. Pure sine wave, Low frequency technology, wall amounted design , light weighted and easy to operate.

3. Selectable input voltage range for home appliances and personal computers.

4. Selectable charging current based on applications.

5. Configurable AC/Solar input priority via LCD setting.

6. Compitable to grid power or generator power.

7. Auto restart while AC/ Solar is recovering, auto charge and switch, unattended operation.

8. Smart battery charger and management for optimized battery performance.

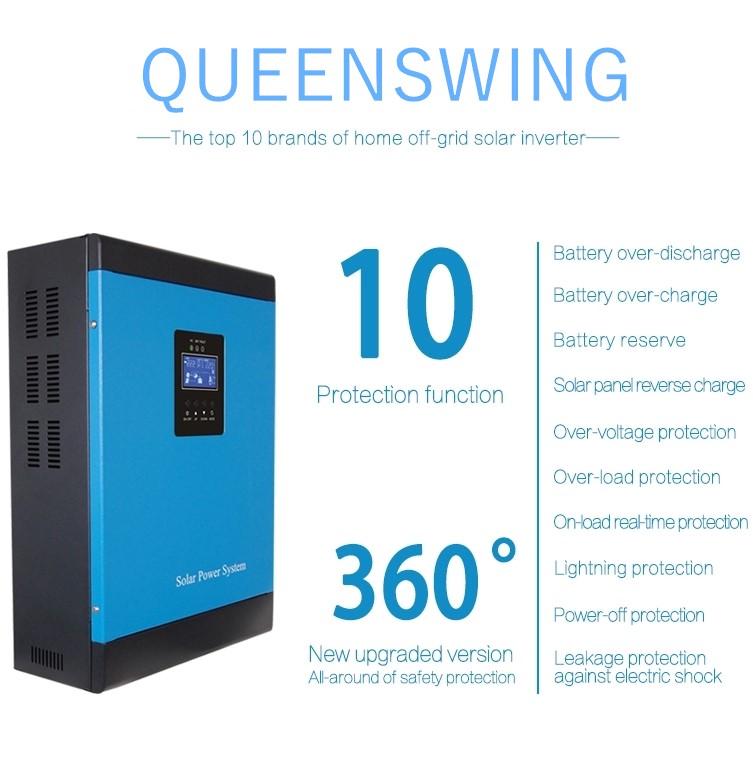

9. All around protection functions: Overload,short circuit protection,high voltage,low battery voltage,high temperature.


































































Specification

MPPT Models MI-1KVA MI-1.5KVA MI-2KVA MI-3KVA MI-5KVA MI-6KVA MI-7KVA
PWM Models PI-1KVA PI-1.5KVA PI-2KVA PI-3KVA PI-5KVA PI-6KVA PI-7KVA
Rated power 800W 1000W 1500W 2000W 3000W 4000W 5000W
Battery voltage    24V 48V
Net weight 12KG 13KG 15KG 17KG 19KG 23KG 29KG
Dimension
 L×W×H(mm)
              440×310×132(mm) 485×350×182(mm)
Package  size
L×W×H(mm)
              390×390×510(mm)/2PCS 540×400×240(mm)
Inverter     AC Input voltage range(VAC)             170-275VAC(220V)        85-138VAC(110V)
         Input frequency(Hz) 45-65HZ
Battery voltage range               10.5-15VDC (Single battery voltage)
Output voltage range(VAC) Inverter mode 110V/220V/230V/240V±2%
Utility output voltage range constant voltage output 220VAC±10%      110VAC±10%
 Output frequency(Hz) 50/60±1%.
Utility output frequency range 50Hz  60Hz automatic tracking
    Output waveform Pure sine wave
Efficiency 85%
THD ≤3%
    Transfer time(ms) ≤4ms
Charging type U0-U7
 charging current C0=0A,C1=5A,C2=10A,C3=15,C4=20A,C5=25A,C6=30A
 Battery Lack-voltage alarm/protection    24V(21V/20V)                                   48V(42V/40V)
  Battery over-voltage alarm/ protection 24V(30V/33.4V)                       48V(60V/66.8V)
Overload protection rated power≥110%,60S power off;≥130%,10S power off;≥150%,0.6S power off..
Temperature protection ≥85ºC alarm,≥90ºC shutdown the machine

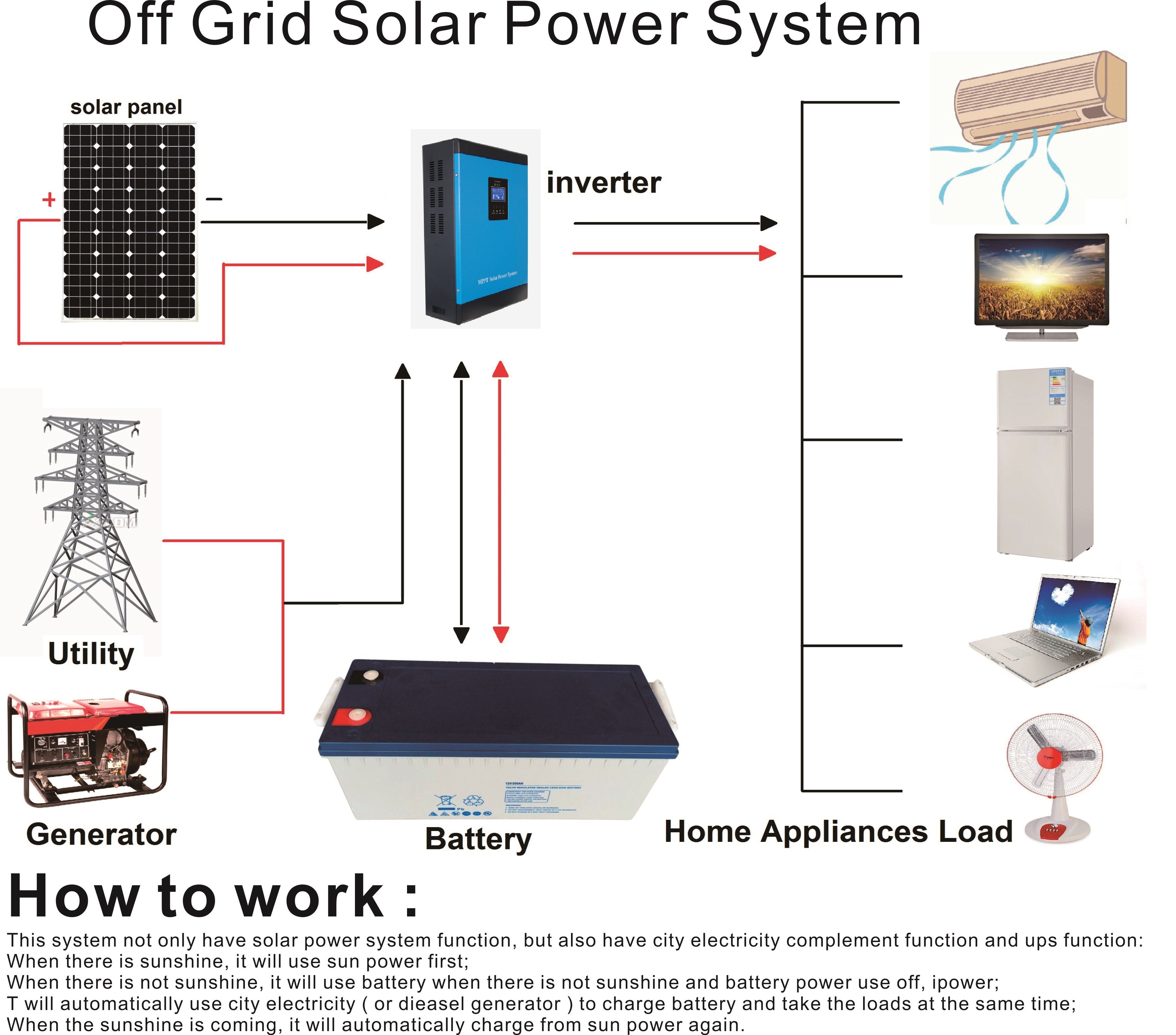

Working mode 01.Normal Mode: Utility is preferred, Utility is charging ;
02Eco Mode:load power≤10% shutdown the machine,≥11%-100% turn on;03 Solar inverter is preferred,Utility is not charging,charging:battery voltage≥13V switch to inverter mode;Inverter:battery voltage≤10.5V, switch to utility mode

Solar power  Controller
 Solar rated voltage 36V                    72V
Maximum input voltage 42V/105V(PWM/MPPT)        84V/160V(PWM/MPPT)
(DC)
Charging voltage
      27V/28.6V(PWM/MPPT)        54V /57.2V(PWM/MPPT)
 Charging current                          40A/ 50A /60A  Optional
Protection  type    Solar cells, anti-anti-charge protection, battery open-circuit protection, battery reversal protection
Overcharging protection voltage    30V     60V
Over  discharge    20V                40V
MPPT System voltage automatic recognition 18V-29V               40V-60V
Maximum PV open circuit voltage (Voc)                                  190V
Max efficiency             ≥98.1%   (Voc is 1.5 or 2 times than battery, then it's best efficiency)
Cooling method Auto detective cooling fan                                   ≤42ºCFan slow turning heat dissipation,
≥45ºC Fan high turning heat dissipation

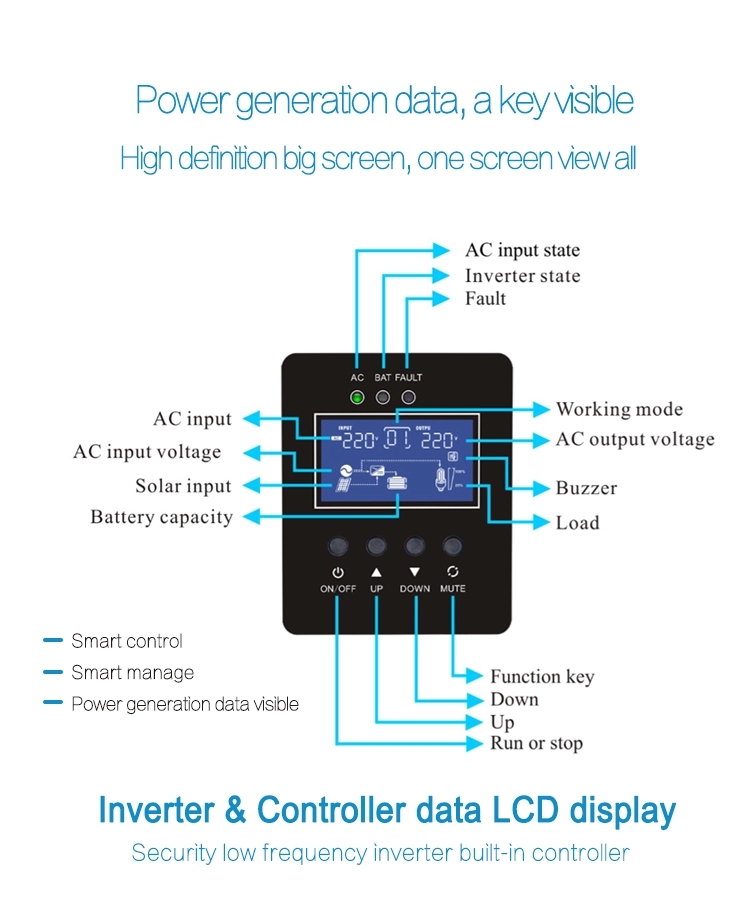

Display LCD  inverter output voltage,input AC voltage,battery capacity percentage,load capacity percentage, Solar input voltage,generating capacity,Solar  charge current,  etc...)
