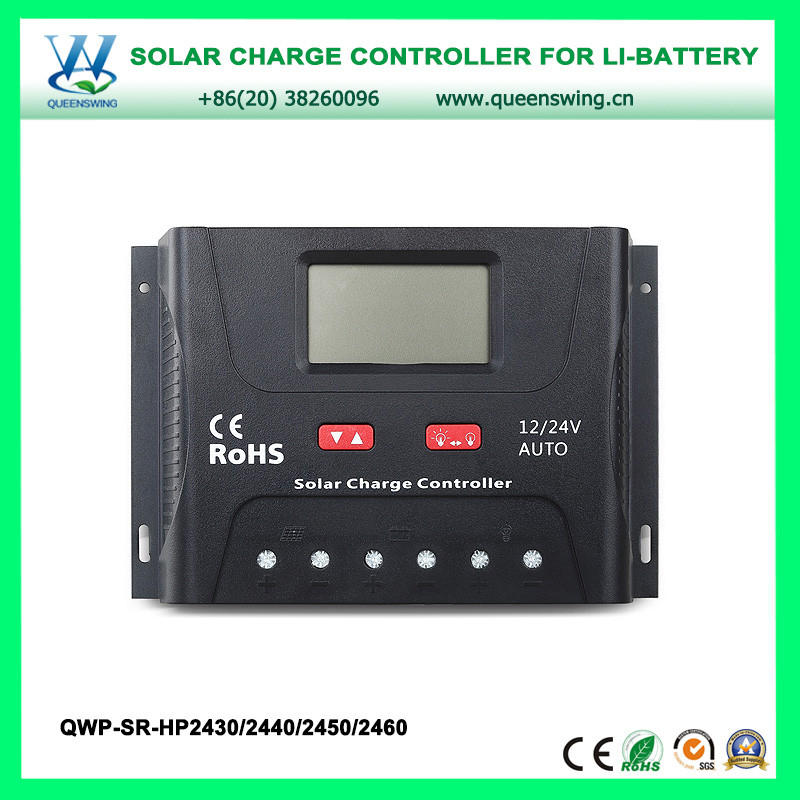

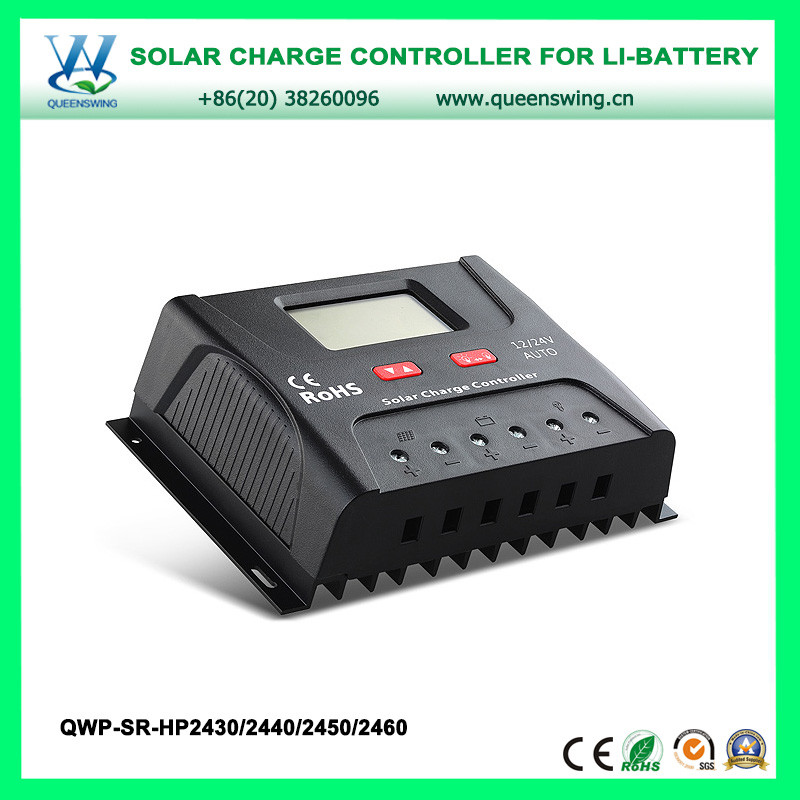

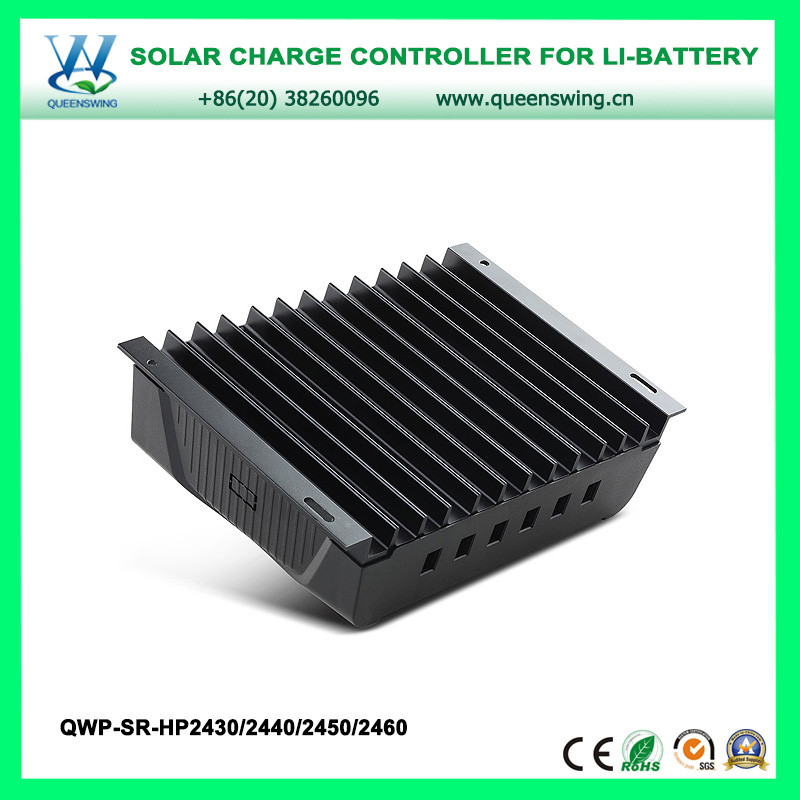

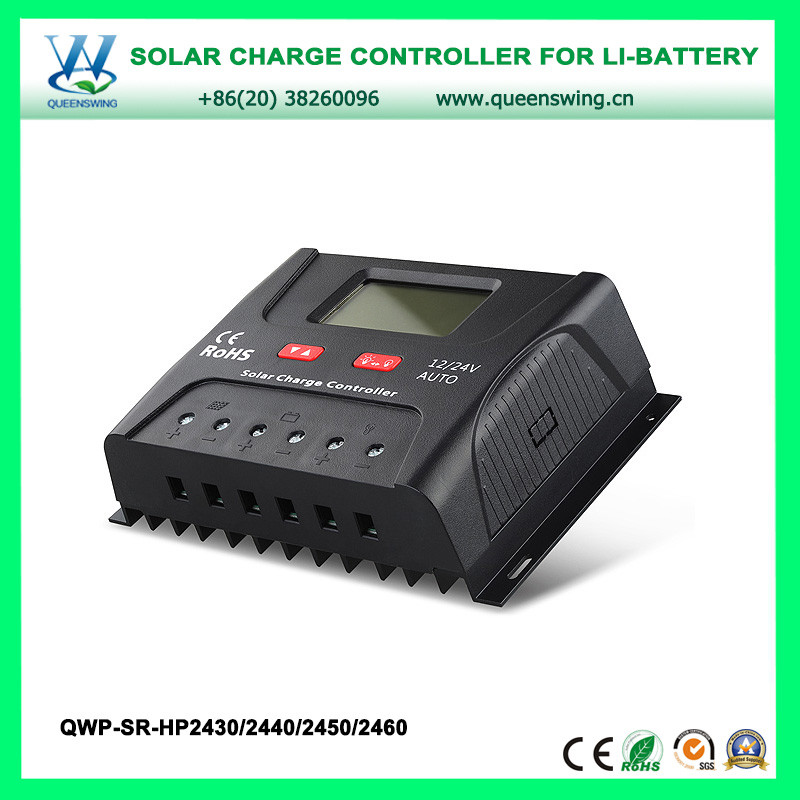

Product name : Home Solar System Controller for Lead-acid & Li battery
Item : QWP-HP Series
Price : Please contact us
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:






1.12V/ 24 V system voltages are automatically recognized.
2.An upgraded 3-stage PWM charging algorithm is adopted. Application of an equalizing charging to the battery periodically or when over discharged, can effectively prevent the battery from non-equalization and sulfuration, thus extending the battery's service life.

3.With temperature compensation employed, charging parameters can be automatically adjusted.
4.A wide range of load working modes facilitate the product's application to different types of load.
5.The product provides overcharge, over-discharge, overload protection, as well as short-circuit protection.
6.By virtue of an advanced load starting method, large-capacitance loads can be started smoothly.
7.The product provides a dot matrix graphic LCD screen and a human-machine interface with a key.
8.The user-friendly design of browser and dynamic interfaces ensure convenient and intuitive operations.
9.Boasting an industrial grade design, the product can function well in various tough conditions.

10.TVS lighting protection is adopted.

Model HP2410 HP2420 HP2420-S
Rated current 10A 20A 20A
current display function No No Yes
System voltage Automatic recognition of 12 V/ 24 V
No-load loss < 10mA/12V;< 12mA/24V
Max. Solar energy input voltage <55V
Max. voltage at the battery end <35V
Overvoltage protection 17.0V;×2/24V;
Equalizing charging voltage 14.6V;×2/24V;
Boost charging voltage 14.4V;×2/24V;
Floating charging voltage 13.8V;×2/24V;
Charging recovery voltage 13.2V;×2/24V;
Over-discharge recovery voltage 12.6V;×2/24V;
Over-discharge voltage 11.1V;×2/24V;
Equalizing charging interval 30days
Equalizing charging time 1H
Boost charging time 2H
Temperature compensation -3.0mV/℃/2V
Light control voltage Light control on 5V, ×2/24V
light control off 6V, ×2/24V
Light control judgment time 1minute
Operating temperature -25℃ to +55℃;
IP protection degree IP30
Net  weight 100g 160g
Protection functions Solar panel short circuit and reverse-connection Over-temperature, overload and short circuit protectionprotection
Dimensions 103×71×36(mm) 130×75×38 (mm)
