Products > Solar Charge Controller > PWM Solar Charge Controller > 12V/24V AUTO Solar Controller with DC light port
Product name : 12V/24V AUTO Solar Controller with DC light port
Item : SCV Series
Price : Contact us
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:


Features:
1. High charging efficiency, tandem PWM charging way, longer battery life;
2. Perfect protection function, include short-circuit, over-current, low-voltage, over-voltage and lighting protection;
3. 12V/24V AUTO, USB 5V mobile phone charge port, and dual way DC12V/24V output;

Technical Parameter:

Model QWP-SC1024U QWP-SC1524U QWP-SC2024U QWP-SC3024U
Battery Voltage 12V/24V AUTO
Charge Current 10A 15A 20A 30A
Discharge Current
Short-circuit current protection 35A
USB discharge current 1A
DC12V/24V discharge
Over-current protection 1.3 times rated current, lasting for 60 second;
1.6 times rated current, lasting for 5 second;
1.6 times rated current, close the loads immediately
Standby Consumption 5mA
Voltage drop in charge loop ≤0.26V
Voltage drop in discharge loop ≤0.15V
Working Temp.  (-35~55℃)
Promoting charge voltage 14.4V; ×2/24V
Direct-charge voltage 13.6V; ×2/24V
Even charge votlage 14.2V;*2/24V
Float charge voltage 13.8V;*2/24V
Charge recovery voltage 13.2V×2/24V
Discharge end-off voltage 10.8V×2/24V
Discharge recovery voltage 12.4V×2/24V
Temp. Compensation (-4mV//2V)
Charge Model PWM
Dimension 140*70*32mm
Weight 180g

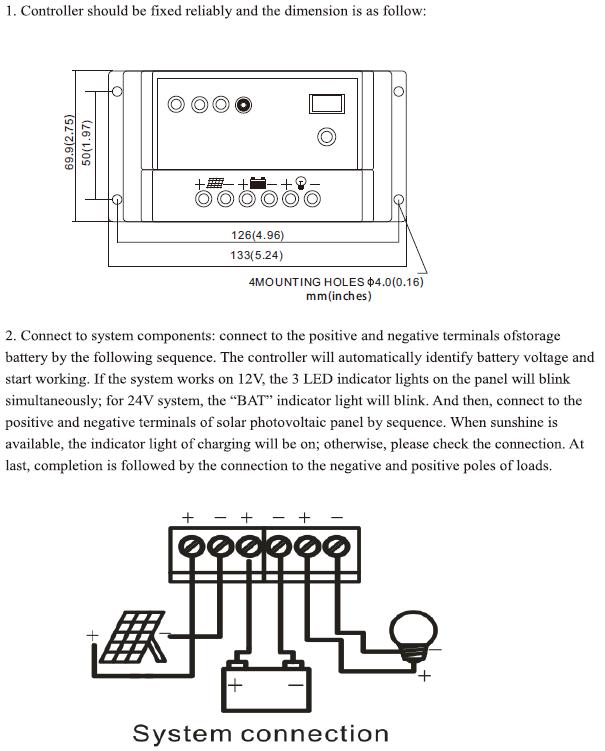

Installation and connection:

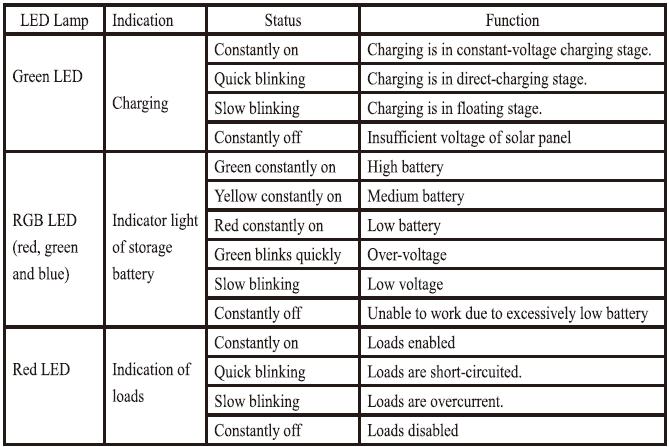

LED Indication:

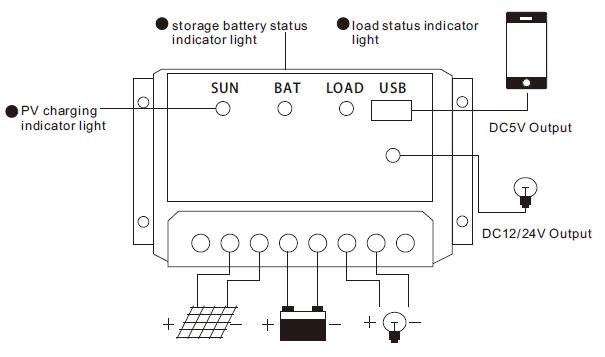

System Diagram:

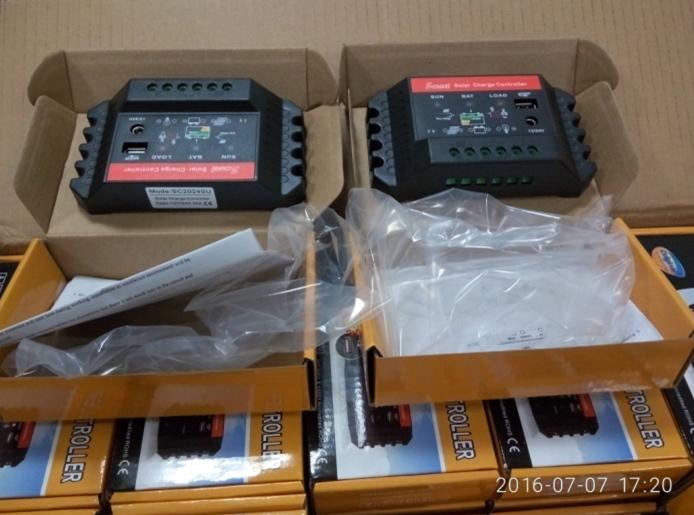

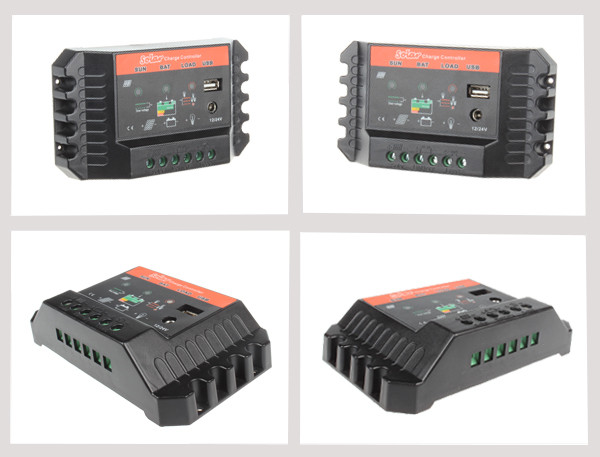

Pictures:
